价格：￥4.50/副
品牌：XC
读卡类型：自锁
工作频率：50HZ
供应：10000副
发送询价
| 读卡类型 | 自锁 |
|---|---|
| 工作频率 | 50HZ |
| 规格 | 30A |
| 接口类型 | 对插 |
| 特性 | 自锁式，安全方便 |
| 线长 | 90MM |
| 芯数 | 单芯 |
| 形状 | 拔插 |
| 应用范围 | 电工电路连接 |
| 针数 | 2 |
| 种类 | 拔插式 |
| 绝缘体材质 | PPO |
| 接触件材质 | 红铜 |
| 支持卡数 | 单卡 |
| 品牌 | XC |

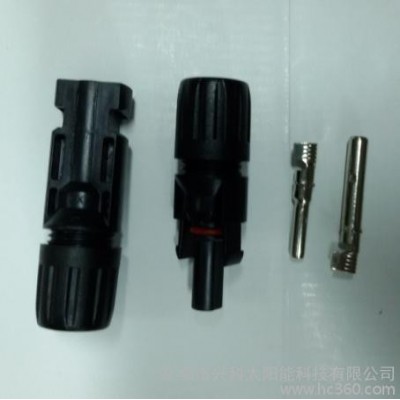

| 型号 | MC4 |
| 加工定制 | 是 |
| Subject | Product Detailed Information | ||||
| Type of appliance | PV Junction Box for Modules | ||||
| Trademark | XINGCO | ||||
| Model No. | C4 | ||||
| Rated Voltage (VDC) | 1000 | ||||
| Rated Current (A) | 30A | ||||
| Application Class (Class A/B/C) | A | ||||
| Pollution Degree (1/2/3/4) | 3 | ||||
| Overvoltage Category (I / II / III / IV) | III | ||||
| Low Ambient Temperature (°C) | -40°C | ||||
| Upper Ambient Temperature (°C) | +85° C | ||||
| Enclosure Rating ( RTI and Flammability Class) | UL94-V0 | ||||
| Wire Cross Section Area Range | 2.5mm2 or 4mm2 and 6mm2 | ||||
| Wire Length | 900mm | ||||
| Degree of Protection (IP Code) | IP67 | ||||
| Contact Material | metal tin | ||||
| Insulation Material | PPO | ||||
