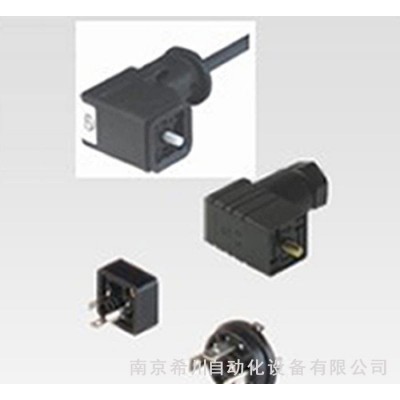

GDM系列 HIRSCHMANN 德国赫斯曼接头连接器

价格：￥15.00/PCS

品牌：SICH

厂家：-

牌号：-

起订：1000PCS

供应：10061PCS

Hydraulic, pneumatic and electromagnetic actuators and sensors – where hardness meets hardness, the GDM-series is fully within its element. And for this reason, the rectangular connector with a high loading capacity is especially well-suited for use with solenoid valves, pressure sensors, flow controllers and in heating equipment in control systems for gas appliances and oil burners. Even in vibration-endangered devices and structural components such as construction machines or in conveyor installations, it is possible to have a highly durable solution with the use of crimp technology.
With built-in electronic components such as rectifiers, optical status displays and protective elements, the GDM-series can be connected to devices where these functions have not been integrated. And last but not least, the GDM-series can be used wherever a “metal-free” environment is required, for example in the food sector and the chemical industry.
The GDM-series is used wherever rectangular connectors have to have resilient qualities, such as for example on drilling rigs, conveyor installations or in construction machines.
The rectangular connector with a large range of cable diameters from 4.5mm to 14 mm is protected against dust and sprayed water with vibration-free locking with a central screw; a knurled screw can also be supplied for use without tools. The valve professional for pneumatic and hydraulic systems. Durability tests successful: the GDM-series can outplug many others.

详细参数

2 + PE / 3 + PE
PG 9 / PG 11 / M 16
max. 1.5 mm2
DIN EN 175 301-803-A
black
A
6.3 mm x 0.8 mm, 4.8 mm x 0.8 mm
AC/DC 250 V
16 A
≤4 mOhm
screw
4.5 mm to 10 mm diameter
central nut
IP 65 (gasket necessary)
-40 °C to +125 °C

南京希川自动化设备有限公司

地址：江苏省南京市浦口区大桥北路9号。

Tel：025-58607989

Mob：18751808105

Fax：025-58402959

QQ：2496603078

可以为您提供专业的工业自动化仪器仪表的服务与技术支持：德国 赫斯曼连接器 HIRSCHMANN GDM系列。
