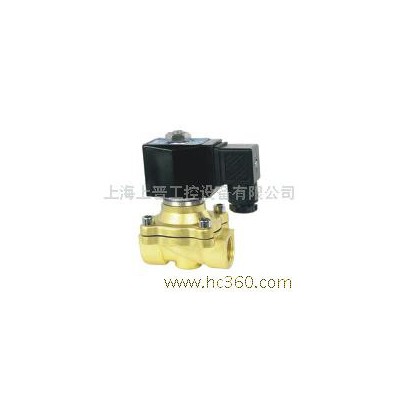

POv 大口径直动式电磁阀 特点 二位二通常闭型电磁阀,断电关闭,通电打开;产品为系列化生产,体积小,流量大,适用范围广 阀体材质为:锻铜,铸铜(只限 32、40、50) 环境温度:0℃~65℃ 介质温度: 0℃~120℃ 安装:按阀上所标流向箭头,为增强使用寿命和可靠性,**好线圈向上,水平安装 电压:AC24V/110V/220V/230V/240V 50/60HZ DC24V/12V ±10%允许波动 16~25mm可选配德国NASS线圈 密封件:可采用NBR、VITON、EPDM等多种,以适用于不同流体的开关控制. ◇微型直动式电磁阀流向图 ◇微型直动式电磁阀 尺寸图 ◇微型直动式电磁阀 详细规格表 接管口径 流量通径 mm | CV值 | 压力差(Kgf/cm2) | **大 流体 温度 | 线圈 | 功率 | 外行尺寸 长×宽×高 A×B×H | 重量KG | **小压力 | **大工作压力 | 空气瓦斯 | 水、热水液体 | 轻油≤20CST | F | VA | W | AC | DC | AC | DC | AC | DC | 配置 | AC220V | DC24V | 3/8” | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 69×57×106 | 0.9 | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | | 120 | D | 33 | 20 | 69×57×106 | 0.9 | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 69×57×106 | 0.9 | 16 | 4.8 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 69×57×106 | 0.9 | 1/2” | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 69×57×106 | 0.9 | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 69×57×106 | 0.9 | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 69×57×106 | 0.9 | 16 | 4.8 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 69×57×106 | 0.9 | 3/4” | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 73×57×114 | 1.08 | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 73×57×114 | 1.08 | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 73×57×114 | 1.08 | 20 | 7.6 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 73×57×114 | 1.08 | 1” | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 99×77×121 | 1.4 | 25 | 12 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 99×77×121 | 1.4 | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 99×77×121 | 1.4 | 25 | 12 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 99×77×121 | 1.4 | 11/4” | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 112×86.5×150 | 2.5 | 32 | 24 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 112×86.5×150 | 2.5 | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 112×86.5×150 | 2.5 | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 20 | 112×86.5×150 | 2.7 | 32 | 24 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 112×86.5×150 | 2.7 | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 112×86.5×150 | 2.7 | 11/2” | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 123×94×160 | 2.9 | 40 | 29 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 123×94×160 | 2.9 | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 123×94×160 | 2.9 | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 123×94×160 | 3.2 | 40 | 29 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 123×94×160 | 3.2 | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 123×94×160 | 3.2 | 2” | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 168×123×183 | 5.2 | 50 | 48 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 168×123×183 | 5.2 | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 168×123×183 | 5.2 | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 168×123×183 | 5.4 | 50 | 48 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 168×123×183 | 5.4 | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 168×123×183 | 5.4 | |
