价格：￥0.00/件
是否提供加工定制：否
材质：不锈钢
起订：1件
供应：1件
发货：60天内
发送询价
| 是否提供加工定制 | 否 |
|---|---|
| 材质 | 不锈钢 |
| 缸径 | 1 |
| 适用范围 | 机械设备 |
| 品牌 | Swagelok/世伟洛克 |
| 型号 | SS-QC4-B-400 |

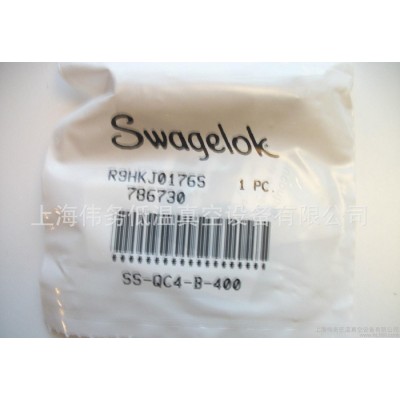

Swagelok SS-QC4-B-400 SS Instrumentation Quick-Connect Body 1/4" Tube Fitting
| Body Material | Stainless Steel |
| Series | Instrumentation Quick-Connect |
| Size | 1/4 in |
| End Connection 1 Size | 1/4 in |
| End Connection 1 Type | Swagelok? tube |
| Body Valve Option | Standard Body Valve |
| Configuration Type | Body |
| Cleaning | Swagelok SC-10 |
| Lubricant | Dow corning 111 |
| O-Ring | Fluorocarbon FKM |
| Paint | No Choice For Paint |
| Sleeve | Standard sleeve |
| Spring | Standard Spring |
| Air Inclusion | 0.3 cm3 |
| Flow Coefficient Cv | 0.2 - If coupled with a DESO stem, 0.3 - If coupled with a SESO stem, |
| Pressure Rating Coupled at Max Temp | 250 PSIG @ 400 °F /17.2 BAR @ 204 °C |
| Pressure Rating Coupled at Room Temp | 3000 PSIG @ 70 °F /206 BAR @ 21 °C |
| Pressure/Temp. Rating (Coupling and Uncoupling) | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
| Pressure Rating UnCoupled at Room Temp | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
| Spillage | 0.3 cm3 |
