价格:面议
品牌:美国SWAGELOK世伟洛克阀门
材质:不锈钢
产地:美国
供应:500
发送询价
材质 | 不锈钢 |
---|---|
产地 | 美国 |
公称直径 | 6.35mm |
适用范围 | 工业 |
种类 | 直通 |
品牌 | 美国世伟洛克SWAGELOK阀门 |
型号 | SS-QC4-S-4MT |
加工定制 | 否 |

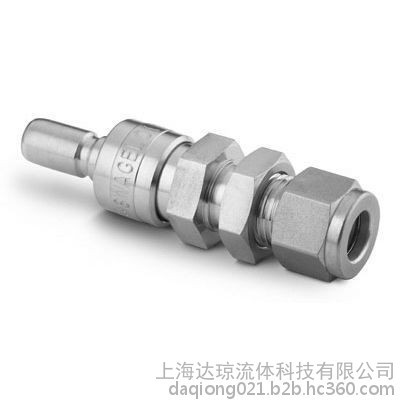

SS-QC4-S-4MT Stainless Steel Instrumentation Quick Connect Stem without Valve, 0.3 Cv, 1/4 in. Male ISO Tapered Thread
Body Material | 316 Stainless Steel |
Connection 1 Size | 1/4 in. |
Connection 1 Type | Male ISO Tapered Thread |
Bulkhead | No Bulkhead |
Cleaning Process | Standard Cleaning and Packaging (SC-10) |
Configuration | Stem |
Flow Coefficient | 0.3 - If coupled with a standard or reverse flow body, 0.4 - If coupled with a full flow body |
Size | 1/4 in. |
UNSPSC (SWG01) | 31163101 |
Lubricant | Without lube on any components |
Paint | No Choice For Paint |
Pressure Rating Coupled at Max Temp | 250 PSIG @ 400 °F /17.2 BAR @ 204 °C |
Pressure Rating Coupled at Room Temp | 3000 PSIG @ 70 °F /206 BAR @ 21 °C |
Series | Instrumentation Quick-Connect |
Sleeve | Standard Sleeve |
Spring | Standard Spring |
■重新设计的管茎插入件只需要一个O型圈密封, 提高了O型圈的密封度。
■新设计的管茎和管体可与老式设计的管茎和管体互换。
■带有更大接触面积的锁定装置夹住了管茎。
■推入式连接使操作迅速, 方便。
■可提供范围广泛的选购件, 其中包括带键型快速接头
■结实的管体套管保护管体的开口端。
型号:
SS-QC4-S-2PM
SS-QC4-D-2PM
SS-QC4-S-4PM
SS-QC6-S-4PM
SS-QC4-D-4PM
SS-QC6-D-4PM
SS-QC6-S-6PM
SS-QC6-D-6PM
SS-QC8-S-8PM
SS-QC8-D-8PM
SS-QC4-S-4MT
SS-QC4-D-4MT
SS-QC6-S-6MT
SS-QC6-D-6MT
