价格：￥0.00/件
品牌：力士乐
发货：3天内

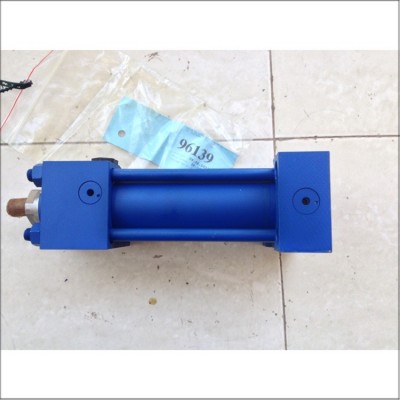

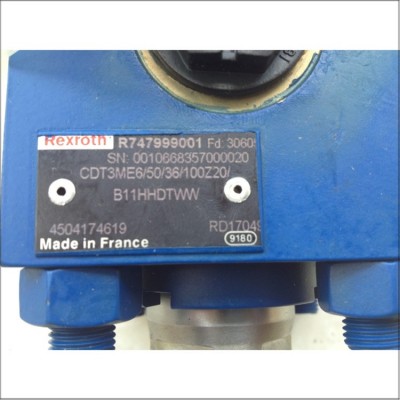

厦门供应 全新原装\力士乐\油缸\CDT3ME6 50 36 100Z20 B11HHDTWW
联系人：18965852209 QQ：2277643779 （小崔）
CDM1 CGM1 CSM1 液压缸，磨机型
CDM1
单杆液压缸
ISO 6020-1
组件系列 2X
公称压力 160 巴
活塞直径 25 至 200 mm
活塞杆直径 14 至 140 mm
最大行程长度 3000 mm
- 组件系列2X
- 公称压力160巴[16兆帕]
- 9种安装
- 活塞直径（OAL）25至200mm
- 活塞杆直径（OMM）14140毫米
- 行程长度达3,000毫米
- 自我调节或终端位置缓冲调节
安装位置 ；任何
环境温度范围°C ；[°F]-20 ...+ 80-4 ...+176]
底漆1） ；微米分钟。 40
公称压力2）条[兆帕]160[16]
最小工作压力3）（无负载）巴[兆帕]10[1]
静态测试压力棒[兆帕]240[24]
液压油温度范围°C [°F]-20 ...+ 80-4 ...+176]
粘度范围mm2/ s的2.8... ...380
被污染的最大允许程度
根据ISO4406液压油，清洁类（C）类20/18/154）
行程速度5）（取决于线连接）米/秒到0.5
出血标准，从活塞?40毫米固定以防止旋松
矿物油HL，HLP NBR，FKM DIN51524
磷酸酯HFDR FKM ISO12922
根据要求水乙二醇HFC
200
125 R900867277 R961006246 R961006281 R961006316 R900866769 R900867156 R900868911 R961006351 R900868964
140 R900867278 R961006247 R961006282 R961006317 R900866770 R900867157 R900868912 R961006352 R900868965
220
140 R900888020 R961006248 R961006283 R961006318 R900888036 R900888060 R900888028 R961006353 R900888052
160 R900888021 R961006249 R961006284 R961006319 R900888037 R900888061 R900888029 R961006354 R900888053
250
160 R900888022 R961006250 R961006285 R961006320 R900888038 R900888062 R900888030 R961006355 R900888054
180 R900888023 R961006251 R961006286 R961006321 R900888039 R900888063 R900888031 R961006356 R900888055
280
180 R900888024 R961006252 R961006287 R961006322 R900888040 R900888064 R900888032 R961006357 R900888056
200 R900888025 R961006253 R961006288 R961006323 R900888041 R900888065 R900888033 R961006358 R900888057
320
200 R900888026 R961006254 R961006289 R961006324 R900888042 R900888066 R900888034 R961006359 R900888058
220 R900888027 R961006255 R961006290 R961006325 R900888043 R900888067 R900888035 R961006360 R900888059
密封套件
CDH1 – 标准 + 附加选件 F
40 22 R900861024 R961006140 R961006167 R900861049 R961006194 R900861099
28 R900861025 R961006142 R961006169 R900861050 R961006196 R900861100
50 28 R900861026 R961006143 R961006170 R900861051 R961006197 R900861101
36 R900861028 R961006145 R961006172 R900861053 R961006199 R900861103
63 36 R900861029 R961006146 R961006173 R900861054 R961006200 R900861104
45 R900861031 R961006148 R961006175 R900861056 R961006202 R900861106
80 45 R900861032 R961006149 R961006176 R900861057 R961006203 R900861107
56 R900861034 R961006151 R961006178 R900861059 R961006205 R900861109
100 56 R900861035 R961006152 R961006179 R900861060 R961006206 R900861112
70 R900861037 R961006154 R961006181 R900861062 R961006208 R900861115
125 70 R900861038 R961006155 R961006182 R900861063 R961006209 R900861117
90 R900861040 R961006157 R961006184 R900861065 R961006211 R900861122
140 90 R900861041 R961006158 R961006185 R900861066 R961006212 R900861124
100 R900861042 R961006159 R961006186 R900861067 R961006213 R900861126
160 100 R900861043 R961006160 R961006187 R900861068 R961006214 R900861128
110 R900861044 R961006161 R961006188 R900861069 R961006215 R900861130
180 110 R900861045 R961006163 R961006190 R900861070 R961006217 R900861133
125 R900861046 R961006164 R961006191 R900861071 R961006218 R900861135
200 125 R900861047 R961006165 R961006192 R900861072 R961006219 R900861142
140 R900861048 R961006166 R961006193 R900861073 R961006220 R900861143
CGH1 – 标准 + 附加选件 F
40 22 R900868998 R961006361 R961006388 R900869025 R961006415 R900869092
28 R900868999 R961006363 R961006390 R900869026 R961006417 R900869093
50 28 R900869000 R961006364 R961006391 R900869027 R961006418 R900869094
36 R900869002 R961006366 R961006393 R900869029 R961006420 R900869096
63 36 R900869003 R961006367 R961006394 R900869030 R961006421 R900869097
45 R900869005 R961006369 R961006396 R900869032 R961006423 R900869099
80 45 R900869006 R961006370 R961006397 R900869033 R961006424 R900869100
56 R900869008 R961006372 R961006399 R900869035 R961006426 R900869102
100 56 R900869009 R961006373 R961006400 R900869036 R961006427 R900869103
70 R900869013 R961006375 R961006402 R900869038 R961006429 R900869105
125 70 R900869014 R961006376 R961006403 R900869039 R961006430 R900869106
90 R900869016 R961006378 R961006405 R900869041 R961006432 R900869108
140 90 R900869017 R961006379 R961006406 R900869042 R961006433 R900869109
100 R900869018 R961006380 R961006407 R900869043 R961006434 R900869110
160 100 R900869019 R961006381 R961006408 R900869044 R961006435 R900869111
110 R900869020 R961006382 R961006409 R900869045 R961006436 R900869112
180 110 R900869021 R961006384 R961006411 R900869046 R961006438 R900869113
125 R900869022 R961006385 R961006412 R900869047 R961006439 R900869114
200 125 R900869023 R961006386 R961006413 R900869048 R961006440 R900869115
140 R900869024 R961006387 R961006414 R900869049 R961006441 R900869116
密封套件
40 28 R900861025 R961006142 R961006169 R961006072 R900861050 R961006196 R900861100
50
28 R900861026 R961006143 R961006170 R961006073 R900861051 R961006197 R900861101
36 R900861028 R961006145 R961006172 R961006075 R900861053 R961006199 R900861103
63
36 R900861029 R961006146 R961006173 R961006076 R900861054 R961006200 R900861104
45 R900861031 R961006148 R961006175 R961006078 R900861056 R961006202 R900861106
80
45 R900861032 R961006149 R961006176 R961006079 R900861057 R961006203 R900861107
56 R900861034 R961006151 R961006178 R961006081 R900861059 R961006205 R900861109
100
56 R900861035 R961006152 R961006179 R961006082 R900861060 R961006206 R900861112
70 R900861037 R961006154 R961006181 R961006084 R900861062 R961006208 R900861115
