价格：￥0.00/件
品牌：力士乐
发货：3天内

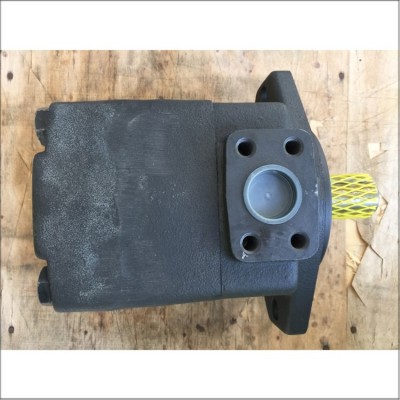

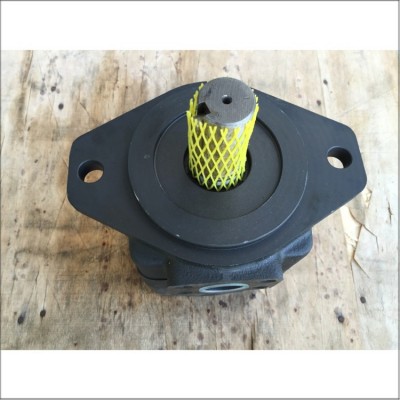

厦门供应 全新原装\力士乐\叶片泵\PVV4-1X 098RA15DMC
咨询电话：18965852209 资询QQ：2277643779 （小崔）
定量叶片泵 型号 PVV
排量 18 至 193 ；元件系列: 1X ；最大工作压力 210 bar ；最大挤压容积 18 至 193 cm3
– 定排量
– 由于液压卸荷的轴而使轴承拥有长寿命
– 由于液压卸荷的叶片而仅有很小的磨损
– 工作噪音低
– 由于泵芯的互换性，有利于售后服务
– 好的效率
– 压油口的位置可选
– 驱动转向或右旋或左旋
– 驱动轴可选圆柱形或花键
双联泵：
– 极紧凑的结构
– 压油口的位置可分开选择
PVV 和 PVQ 泵是定排量叶片泵。在驱动轴驱动轴 (1) 的齿上安装有转子 (2)，它在定子环 (3) 内回转。叶片 (4) 安装在转子槽内，转子转动时靠离心力使叶片压在定子环的内表面。排油腔的端面由配油盘 (5) 密封。由于
定子环是双偏心结构，因此形成对称布置的两个吸油区和两个压油区，因此传动轴的径向液压力相互平衡而卸载。
由于 PVQ 泵的设计结构，使其特别适用于行走机械应用。由于配油盘的特殊结构，而能够补偿转子体的热膨胀和能够对突然的压力变化起到抵抗作用。通过将配油盘分成柔性盘(7) 和端盖 (8) 而形成反向压力腔 (9)，以平衡在挤压器中的压轴仅传递驱动转矩。在吸油区，叶片部分地卸荷。这能减少磨损和获得高效率。取下端盖 (6)，可以更换泵芯 (由转子、叶片、定子环和配油盘组成)，而不必从钟形罩上卸下泵体 (7)。这样就能迅速地对泵进行维护和修理。力。这就保证了转子和柔性盘之间的最佳间隙，因而保证泵拥有最好的容积效率。
结构 ；法兰安装按 SAE J744
油口 ；SAE 法兰款式 (固定螺纹: UNC)
转向 ；右旋或左旋
液流方向 ；进油口和压油口不取决于转向
安装位置 ；任意，手选进油口在上面
驱动 ；直接，同轴驱动；不能传递轴向和径向力
重量
BG 1 2 2K 4 4K 5 5K 21 41 42 51 52 54
kg 12 14.8 19.4 23 28.7 34 38.1 20 34 34.5 43 46 54
R900249875 PVV4-1X/113RR15UVC
R900616927 PVV4-1X/113RJ15UMC
R900704427 PVV4-1X/098LR15DMC
R900704433 PVV4-1X/113RJ15DMC
R900710468 PVV4-1X/082RA15UVC
R900715998 PVV4-1X/082RB15UMC
R900728943 PVV4-1X/098RA15UVC
R900744476 PVV4-1X/098RA15RVC
R900758553 PVV4-1X/098RA15DMCK01
R900758709 PVV4-1X/082LJ15UMC
R900761017 PVV4-1X/069RB15DMCK01
R900761018 PVV4-1X/069RB15DMCK02
R900761021 PVV4-1X/069RB15DMCK07
R900761023 PVV4-1X/082RB15DMCK02
R900761025 PVV4-1X/082RB15DMCK01
R900761029 PVV4-1X/082RB15DMCK07
R900761030 PVV4-1X/098RB15DMCK01
R900761032 PVV4-1X/098RB15DMCK02
R900761033 PVV4-1X/098RB15DMCK07
R900761035 PVV4-1X/113RB15DMCK01
R900761036 PVV4-1X/113RB15DMCK02
R900761037 PVV4-1X/113RB15DMCK07
R900761040 PVV4-1X/122RB15DMCK01
R900763515 PVV4-1X/122RB15DMCK07
R900763517 PVV4-1X/122RB15DMCK02
R900767419 PVV4-1X/098LA15UVC
R900770920 PVV4-1X/122LJ15DMC
R900928299 PVV4-1X/098RB15DMC
R900928961 PVV4-1X/122RA15UMC
R900929542 PVV4-1X/122RA15DMC
R900930907 PVV4-1X/098RA15UMC
R900931136 PVV4-1X/082RA15UMC
R900931548 PVV4-1X/082RA15DMC
R900933057 PVV4-1X/082RA15RMC
R900935445 PVV4-1X/069RA15UMC
R900936293 PVV4-1X/069RA15DMC
R900936294 PVV4-1X/098RA15DMC
R900936295 PVV4-1X/098RR15DMC
R900936491 PVV4-1X/113RA15DMC
R900937330 PVV4-1X/082RA15LMC
R900938819 PVV4-1X/113RA15UMC
R900939077 PVV4-1X/098RJ15DMC
R900939682 PVV4-1X/098RR15RMC
R900939701 PVV4-1X/082RR15RMC
R900940214 PVV4-1X/082RB15DMC
R900940361 PVV4-1X/122LA15UMC
R900941692 PVV4-1X/122RJ15DMC
R900941699 PVV4-1X/098RA15RMC
R900942108 PVV4-1X/098RJ15UMC
R900942222 PVV4-1X/098RB15UMC
R900942488 PVV4-1X/122RB15DMC
R900942737 PVV4-1X/082LA15DMC
R900942738 PVV4-1X/069LA15DMC
R900943054 PVV4-1X/113RA15UVC
R900945761 PVV4-1X/122RA15LMC
R900945850 PVV4-1X/082RJ15DMC
R900946902 PVV4-1X/082RB15UVC
R900947259 PVV4-1X/098RA15DVC
R900948297 PVV4-1X/069RJ15DMC
R900948714 PVV4-1X/069RB15RMC
R900954911 PVV4-1X/069RA15LMC
R900958918 PVV4-1X/082LA15LVC
R900962288 PVV4-1X/098LA15UMC
R900963679 PVV4-1X/113RA15DVC
R900978703 PVV4-1X/082RA15DVC
R900978728 PVV4-1X/122RJ15UMC
R900978729 PVV4-1X/122LJ15UMC
R901012238 PVV4-1X/122RA15DVC
R901014435 PVV4-1X/113RB15RMC
R901014437 PVV4-1X/082LA15UMC
R901024704 PVV4-1X/082RJ15UMC
R901039283 PVV4-1X/069RJ15UMC
R901041190 PVV4-1X/069RB15RVC
R901045673 PVV4-1X/098RA15LMC
R901050835 PVV4-1X/113RA15LVC
R901078254 PVV4-1X/098RJ15DMCK02
R901082163 PVV4-1X/082RA15RVC
R901104702 PVV4-1X/122RA15RMC
R901134663 PVV4-1X/113RJ15UVC
R901202228 PVV4-1X/098RJ15DMCK01
R901236531 PVV4-1X/122RJ15DVC
