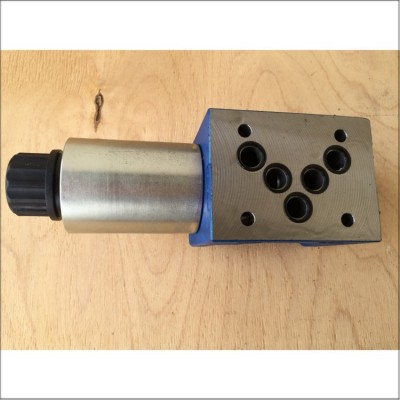

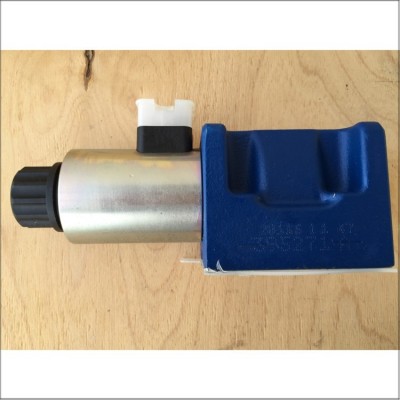

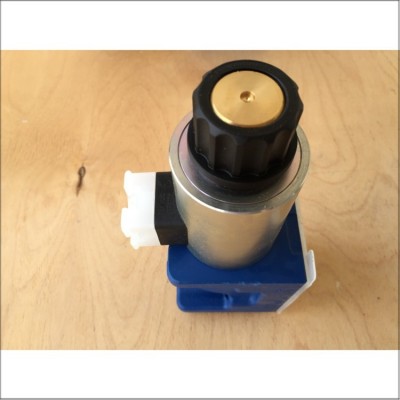

厦门供应 全新原装 力士乐 阀 4WE10D50 HG24N9K4 M图1厦门供应 全新原装 力士乐 阀 4WE10D50 HG24N9K4 M图2厦门供应 全新原装 力士乐 阀 4WE10D50 HG24N9K4 M图3

厦门供应 全新原装 力士乐 阀 4WE10D50 HG24N9K4 M

2024-11-22 09:083060询价

价格:¥0.00/件

品牌:力士乐

5:32

23:3

25:2

发货:3天内

发送询价

厦门供应 全新原装\力士乐\阀\4WE10D50 HG24N9K4 M

咨询电话:18965852209   资询QQ2277643779  (小崔)

型号 4WE 带电磁起动的直动式方向滑阀 - 规格 10 - 组件系列 5X - 最大工作压力 350 bar [5076 psi] - 最大流量 160 l/min [42.3 US gpm] ,特点 - 具有三位四通,二位四通或二位三通的方向设计 - 高功率线圈 - 符合 ISO 4401-05-04-0-05 和 NFPA T3.5.1 R2-2002 D05 的油口安装面 - 带可拆卸线圈的湿式插脚直流线圈 - 电磁线圈可旋转 90° - 更换线圈时,不必打开耐压密闭腔体 - 电气连接作为单个或对中连接 - 通过双连接插头实现对中连接 - 手动应急操作,可选 。3WE 3 个主油口 4WE 4 个主油口 。WE 型号的方向阀为电磁线圈起动方向滑阀,该阀可用作电磁组件。该阀控制流体的启动,停止和方向。这些方向阀的基本构成为壳体(1),一个或两个电子线圈(2),控制阀芯(3)和复位弹簧(4)。在断电情况下,控制阀芯(3)由复位弹簧(4)固定在中心位置或初始位置(型号 "O" 除外)。当湿式插脚电子线圈(2)通电时,控制阀芯(3)从静止位置移至所需的端位置。这样就可以根据所选符号释放所需流向。在关闭电子线圈(2)后,控制阀芯(3)将被推回至中心位置或初始位置(除了带 "OF" 制动器的阀和不带弹簧类型 "O" 的阀)。手动应急操作(6)可在线圈不通电的情况下手动切换阀门。要确保正常运行,须注意将线圈的压力腔注满液压油。不带弹簧复位 "O"(仅可使用符号 A,C 和 D)这种型号为带 2 个阀芯位置和 2 个电子线圈且不带制动器的方向阀。在控制阀芯(3)处不带弹簧复位的阀在断电状态下无确定的基本位置。不带弹簧复位带 "OF" 制动器(仅可使用符号 A,C 和 D)这种型号为带 2 个阀芯位置和 2 个电子线圈且带制动器的方向阀。制动器用于将控制阀芯(3)固定在相关的阀芯位置。因此,在操作过程中,无需向电子线圈持续施加电流,这样有助于节能操作。注意!针对带有制动器的阀门,油箱管路中两个或多个阀门的压力峰值可能造成意外的控制阀芯运动!因此我们建议提供单独的回油管路或在油箱管路中安装单向阀。

R901278770 3WE10 A5X/EG24N9K4/M

R901317862 3WE10 A5X/EG24N9K4/M=TE

R901317863 3WE10 A5X/DEG24N9K4/M=TE

R901326390 3WE10A5X/EG12N9K4/M

R901330537 3WE10A5X/EG24K4/M

R901330727 3WE10A5X/EG24N9K4/T06M

R901336179 3WE10A5X/EG205N9K4/M

R901337622 3WE10A5X/EG24N9K4/B12V

R901339842 3WE10A5X/EG24N9K4/V

R901347130 3WE10A5X/EG96N9K4/M

R901347404 3WE10A5X/EG24K4/V

R901349736 3WE10A5X/OFEG205N9K4/V

R901349808 3WE10A5X/EG24N8K4/M

R901350294 3WE10A5X/OFEG220K4/M

R901350295 3WE10A5X/OFEG24N9K4/M

R901350500 3WE10A5X/OEG205N9K4/M

R901354100 3WE10A5X/EG96N9K4/V

R901358038 3WE10A5X/DEG24N8K4K/T12M=PL

R901361238 3WE10A5X/OFEG24N9K4/B12V

R901361241 3WE10A5X/OFEG24N9K4/V

R901364502 3WE10A5X/EG220N9K4/M

R901369219 3WE10A5X/EG220N9K4/V

R901369225 3WE10A5X/EG205N9K4/V

R901384329 3WE10A5X/OFEG24N9K72L/M

R901384704 3WE10A5X/EG24N8K4K/T12M

R901317863 3WE10A5X/DEG24N9K4/M

R901388992 3WE10A5X/DEG24N9K4/M

R901404946 3WE10A5X/EG24N9K4/B10M

R901407601 3WE10A5X/EG24N9K72L/M

R901412252 3WE10A5X/EG48N9K4/M

R901414727 3WE10A5X/EG24K72L/M

R901415404 3WE10A5X/OFEG220N9K4/M

R900244015 4WE10L3X/CW110N9K4/V

R900244016 4WE10J4X/CG205N9DL

R900244017 4WE10GA4X/CG205N9DL

R900244072 4WE10X7-3X/CG205N9K4 SO9

R900244073 4WE10R10-3X/CG205N9K4 SO9

R900244300 4WE10MB3X/CW230N9K4

R900244586 4WE10HA3X/CG24N9K4/T06

R900244857 4WE10E67-3X/CW230N9K4/T06

R900244932 4WE10E19-3X/CW230N9K4

R900244975 4WE10D3X/CG96NK4

R900245056 4WE10J4X/CW48N9DKL

R900245057 4WE10X19A3X/CW110N9K4

R900245567 4WE10R73B3X/CG96N9K4/A12

R900245634 4WE10Q4X/CG24N9DK35L

R900245649 4WE10E73-3X/CG24N9K4/A12 SO849

R900245703 4WE10D4X/OFCW230N9DAL/V

R900245882 4WE10FA3X/CW110N9K4

R900245883 4WE10J2-3X/CW110N9K4/B10

R900245921 4WE10H73-3X/CG24N9K4/A12=CSA

R900245922 4WE10Y3X/CG24N9K4=CSA

R900246063 4WE10W4X/CW110N9DL

R900246078 4WE10T4X/CW110N9DJL

R900246170 4WE10J2-3X/CG24NK4/B10

R900246382 4WE10J73-3X/CG24K4/A12 SO702

R900246513 4WE10J4X/CG24N9DJL1

R900246609 4WE10C3X/CG96N9K4QMBG24

R900246620 4WE10E73-3X/CG96N9K4/A12 SO849

R900246787 4WE10J73-3X/CG96N9K4/A12B10

R900246791 4WE10G3X/CW110N9K4=CSA

R900246803 4WE10E4X/CW230N9DAL

R900246890 4WE10C3X/CG24N9K4 SO9=CSA

R900246891 4WE10D3X/CG48N9K4QMAG24/V

R900247016 4WE10D4X/CG24N9DL SO9

R900247017 4WE10G3X/CG96N9K4SO849

R900247018 4WE10G3X/CG24N9K4SO849

R900247019 4WE10Q4X/CG24N9DK24L SO482

R900247093 4WE10E4X/CW110N9DJL

R900247138 4WE10E3X/CG110N9K4=CSA

R900247153 4WE10D73-3X/CG24N9K4 SO99

R900247403 4WE10J3X/CG24N9K4=AN

R900247668 4WE10J3X/CG24N9K4/V=CSA

R900247792 4WE10E3X/CG24N9K4/MH SO9

R900247813 4WE10Q4X/CW110N9DK25L/V

R900248095 4WE10R73-3X/CG96N9K4/A12

R900248206 4WE10C3X/CG24NK4 SO702

R900248208 4WE10P3X/CG24N9K4/B08

R900248209 4WE10M4X/CW230N9DL

R900248594 4WE10D3X/OFCG24N9K4/V=CSA

R900248742 4WE10H4X/CG24N9DJL1

R900248972 4WE10D4X/OCW230N9DK25L/V

R900249177 4WE10G4X/CW230N9DL/V

R900249424 4WE10J73B3X/CG24N9K4/A12V

R900249427 4WE10D3X/CG48NK4

R900249507 4WE10J3X/CG12N9K4=HY

R900249828 4WE10EB3X/CG205N9K4QMBG24

R900249849 4WE10E73B3X/CG96N9K4/A12

R900249905 4WE10J3X/CG96N9K4=CSA

R900500006 4WE10U1-3X/CG24N9K4/T06

R900500223 4WE10M3X/CW110N9K4

R900500660 4WE10D3X/CG24N9K4 SO9

R900500716 4WE10P3X/CG24N9K4

R900500925 4WE10C3X/OFCG24N9K4

R900500932 4WE10M3X/CG24N9K4

R900501161 4WE10GA3X/CW230N9K4

R900501266 4WE10D3X/CG24NK4/B35

R900501813 4WE10G3-3X/CG24NK4

R900501993 4WE10X20-3X/CG24N9K4

R900502288 4WE10D3X/CG24K4

R900502953 4WE10GB3X/CG24N9K4/H15

R900503022 4WE10L3X/CG24N9K4 SO9

R900503263 4WE10JA3X/CW230N9K4

R900503265 4WE10J3X/CG24K4

R900503405 4WE10G3X/CG12N9K4

R900503424 4WE10T3X/CG24N9K4

R900503425 4WE10H3X/CW230N9K4

R900504716 4WE10R3X/CG24NK4

R900505256 4WE10Q3X/CW110N9K4

R900505543 4WE10G3-3X/CG24N9K4

R900506008 4WE10G3X/CG96N9K4

R900506114 4WE10E78-3X/CG24N9K4

R900506116 4WE10X83A3X/CG24N9K4

R900506770 4WE10U21-3X/CG24N9K4

R900507383 4WE10J3X/CW42N9K4

R900507497 4WE10J3X/CG24N9K4/B12

R900509000 4WE10Y3X/CG24NK4

R900509838 4WE10E3X/CG24N9K4/V

R900510250 4WE10D3X/CG24N9K4/V SO37

R900510452 4WE10Q40-3X/CG24N9K4

R900510548 4WE10D3X/CG205N9K4

R900510880 4WE10D3X/CG24NK4/B10

R900511494 4WE10E3X/CG205N9K4

R900511606 4WE10D3X/OFCG24NK4

R900511833 4WE10C3X/CG24N9K4 SO99

R900512165 4WE10RB3X/CG24NK4

R900513064 4WE10EA3X/CW110N9K4

R900513577 4WE10P3-3X/CG24N9K4

R900514095 4WE10JA3X/OFCG24N9K4

R900514547 4WE10J3X/CG24NK4/V

R900514548 4WE10D3X/CG24NK4/V

R900514549 4WE10D3X/OFCG24NK4/V

R900514650 4WE10MA3X/OFCG24N9K4

R900514990 4WE10D3X/OFCG24K4

R900516088 4WE10U3X/CG24NK4/B08

R900516640 4WE10JB3X/CG24NK4/V

R900516859 4WE10Q6-3X/CG24N9K4/V

R900517315 4WE10H3X/CW110N9K4

R900517389 4WE10X36A3X/CG24N9K4

R900517556 4WE10J3X/CG60N9K4

R900517564 4WE10HA3X/CG24N9K4/V

R900518721 4WE10Q6-3X/CG24NK4

R900518912 4WE10MB3X/CG24N9K4

R900519313 4WE10R6-3X/CG24N9K4

R900520076 4WE10C3X/CG24NK4/B08

R900520425 4WE10UA3X/CG24NK4

R900520585 4WE10E67-3X/CG24N9K4/T06

R900520736 4WE10H3X/CG24NK4

R900520945 4WE10Q6-3X/CG24N9K4

R900521281 4WE10W3X/CW230N9K4

R900521597 4WE10Y11-3X/CG24N9K4

R900522019 4WE10U3X/CW110N9K4

R900522020 4WE10D3X/OFCW110N9K4/B08

R900522715 4WE10C3X/CG24NK4

R900522760 4WE10JB3X/CG24N9K4

R900523087 4WE10D3X/CW230NK4

R900523295 4WE10WA3X/CG24N9K4

R900523517 4WE10GB3X/CG24N9K4

R900523650 4WE10D3X/CG24NK4 SO99

R900523886 4WE10J3X/CW110NK4

R900524361 4WE10EB3X/CW110N9K4

R900524515 4WE10GA3X/CW110N9K4

R900525329 4WE10G3X/CG24N9K4 SO9

R900525593 4WE10D3X/OFCW110N9K4/B10

R900525717 4WE10E73-3X/CG24N9K4/A12

R900525821 4WE10C3X/OFCG24N9K4/V

R900526001 4WE10JA3X/OFCW110N9K4

R900526070 4WE10X20-3X/CW230N9K4

R900526469 4WE10D3X/CW110NK4/V

R900526470 4WE10W3X/CW110NK4/V

R900526471 4WE10D3X/OFCW110NK4

R900526475 4WE10D3X/OFCW110NK4/V

R900526627 4WE10D3X/CG60N9K4

R900527508 4WE10J3X/CW110N9K4/V

R900527572 4WE10Y3X/CW230N9K4/V

R900527625 4WE10HB3X/CG24NK4

R900527704 4WE10W3X/CW110N9K4/V

R900528033 4WE10D73-3X/CG24N9K4/A12

R900528077 4WE10C3X/CG24NK4 SO99

R900528144 4WE10D3X/CG24N9K4/B12

R900528335 4WE10JA3X/CG24NK4

R900528456 4WE10JB3X/CG24N9K4/V

R900528514 4WE10RB3X/CW110N9K4

R900528640 4WE10D3X/CW230K4

R900528735 4WE10M3X/CG24N9K4/V

R900529437 4WE10D3X/CG24N9K4 SO545

R900529457 4WE10Y3X/CG220NK4

R900529664 4WE10C3X/CG24NK4/X00

R900529749 4WE10F3X/CG24N9K4

R900532187 4WE10F3X/CW110N9K4

R900533250 4WE10C3X/OFCW230N9K4

R900533543 4WE10EB3X/CW230N9K4

R900533876 4WE10D3X/CG24K4 SO196

R900534077 4WE10D3X/OCG24K4

R900534736 4WE10D3X/CW110K4

R900534830 4WE10J2-3X/CG24NK4

R900535082 4WE10R73-3X/CG24N9K4/A12

R900536428 4WE10G3X/CW110N9K4

R900536765 4WE10R3X/CW110N9K4

R900536935 4WE10U3X/CG24K4

R900537609 4WE10J2-3X/CG24N9K4

R900537811 4WE10Y3X/CW110N9K4

R900538407 4WE10GA3X/CG24NK4

R900538965 4WE10JA3X/CG24N9K4/B20

R900538986 4WE10T3X/CW110N9K4

R900539052 4WE10C3X/OCG24N9K4

R900539427 4WE10J3X/CG24K4/MT

R900539774 4WE10U10B3X/CG96N9K4

R900546965 4WE10RB3X/CG24N9K4

R900547146 4WE10P3X/CG48N9K4

R900548045 4WE10J23-3X/CG24K4

R900548238 4WE10P3X/CG205N9K4

R900548515 4WE10E3X/CG24N9K4/B10

R900549440 4WE10EA3X/CG24NK4

R900549623 4WE10U2B3X/CG24N9K4

R900550258 4WE10Q3X/CG24K4

R900550564 4WE10C3X/CG24N9K4/X30

R900550646 4WE10E3X/CG24NK4/B10

R900550647 4WE10R3X/CG24NK4/B10

R900550825 4WE10LB3X/CG24N9K4

R900551131 4WE10D3X/CG24K4/MT

R900551522 4WE10D3X/OFCG205N9K4

R900551724 4WE10EB3X/CG205N9K4

R900551731 4WE10EA3X/CG205N9K4

R900552278 4WE10J3X/CG24NK4 SO9

R900552610 4WE10J3X/CG48NK4

R900553644 4WE10D3X/OCW230N9K4

R900553645 4WE10X121-3X/CW230N9K4

R900553646 4WE10JB3X/CW230N9K4

R900553647 4WE10D3X/OCW110N9K4

R900553648 4WE10X121-3X/CW110N9K4

R900554047 4WE10U10B3X/CG24N9K4
