价格:¥0.00/件
品牌:力士乐
4:64
346:46
6:3
发货:3天内

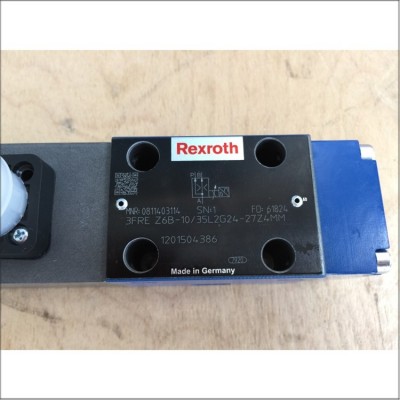

厦门供应 全新原装 力士乐 阀 3FREZ6B-10 35L2G24-27Z4MM
咨询电话:18965852209 资询QQ:2277643779 (小崔)
08114031103FRE X6B-1X/7,5L2G24-25N12Z4MM-254流量控制阀
08114031123FRE X6B-1X/7,5L2G24-25N9Z4MM流量控制阀
08114031133FRE X6B-1X/35L2G24-25N9Z4MM流量控制阀
08114031163FRE X6B-1X/35L2G24-25N12Z4MM-254流量控制阀
08114031323FRE X6B-1X/24L2G24-25N9Z4MM流量控制阀
08114031333FRE X6B-1X/15L2G24-25N9Z4MM流量控制阀
08114031343FREX6B-1X/35L2G24-25N9Z4MM-255流量控制阀
08114031353FRE X6B-1X/20L2G24-25N9Z4MM-259流量控制阀
3型(2)方向
公称尺寸(NG)6,10
单元系列为1x
最大工作压力250巴
额定流量60升/分钟qnom 7.5…
直接控制流量控制阀NG6、NG10
–2或3功能是如何确定液压端口
分配(剩余流量通过端口P,第三路)。
符号“NO”(通常打开)只能作为
一个双向功能
通过螺线管电流可调,见特性
曲线,技术数据和选定的阀门电子
–电磁版IMAX = 2.5
–为底板连接,安装孔配置NG6
ISO 4401-03-02-0-05,NG10 ISO 4401-05-04-0-05
–底板按目录表,再45053茨,
45055对于NG10(单独订购)
传送
具有斜坡和阀校准的外部触发电子设备
以下版本/设计(单独订购)
?插头,设定0…+ 10 V或4…20毫安,30264
?模块,设定0…+ 10 V,30222
?欧洲卡格式,设定0…+ 10 V,30109
一般
3型(2)FREX比例流量控制阀无
位置控制可在标称尺寸6和10。
它们由比例电磁铁驱动。
滞后是< 5%,阀门放大器电子是
可在各种设计。
符号“没有”,常开,只能作为一个双向
流量控制阀(型2frex)。
符号“NC”,通常关闭,可作为一个3或
一个双向流量控制阀。
阀体的设计是这样的,在三版,
剩余流量贯穿端口P。
在双向版,流量从A到B(P和T
关闭)
基本原理
调整油流速度,设定值设定在触发电路。
基于这一点,电子控制的电磁阀
带调节PWM(脉宽调制)电流的线圈。
目前与抖动调制,确保低滞后。
比例电磁铁将电流转换成机械
力,使一个衔铁作用在一个阀芯上推动
对抗春天。然后达到符合的位置
对弹簧的特性曲线。阀门开度
由阀芯上的计量边确定,并集成
压力补偿器比较压降
意味着4个或八测量弹簧。
带测量弹簧的压力补偿器调节
节流前的压力根据简化边
公式:
“加载压力加测量弹簧力”。
这样,在计量边上的压降是
保持在恒定的水平。
