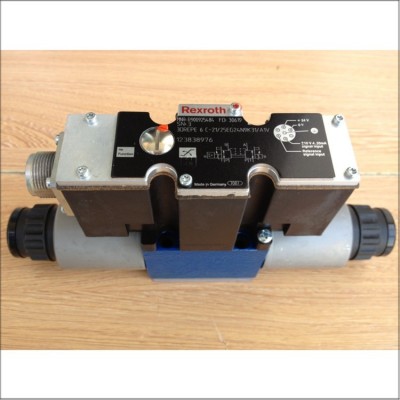

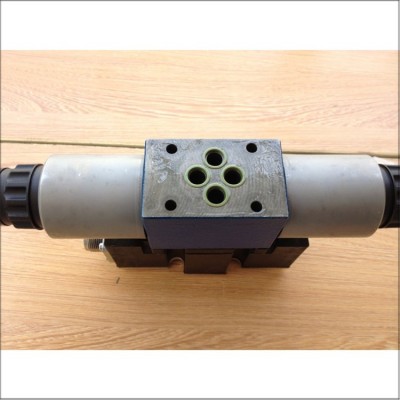

厦门供应 全新原装 力士乐 阀 3DREPE6C-21 25EG24N9K31 A1V图1厦门供应 全新原装 力士乐 阀 3DREPE6C-21 25EG24N9K31 A1V图2厦门供应 全新原装 力士乐 阀 3DREPE6C-21 25EG24N9K31 A1V图3

厦门供应 全新原装 力士乐 阀 3DREPE6C-21 25EG24N9K31 A1V

2024-11-22 09:082770询价

价格:¥0.00/件

品牌:力士乐

35:2

52:5

23:5

发货:3天内

发送询价

厦门供应 全新原装\力士乐\阀\3DREPE6C-21 25EG24N9K31 A1V

咨询电话:18965852209   资询QQ2277643779  (小崔)

类型 3DREP 和 3DREPE 比例减压阀,三通型号

规格 6

组件系列 2X

最大工作压力 100 bar

最大流量 15 l/min

– 直动式比例阀用于控制压力和流向

– 通过带对中螺纹和可拆卸线圈的比例线圈进行操作

– 底板安装:安装面符合 ISO 4401

– 手动操控,可选

– 弹簧对中控制阀

– 类型 3DREPE 带集成控制电子元件

– 类型 3DREP 的外部控制电子元件:

  模拟放大器类型 VT-VSPA2-1-2X/…,采用欧洲板卡标准

(单独订购),请参阅第 5 页

  数字放大器类型 VT-VSPD-1-1X/…,采用欧洲板卡标准

(单独订购),请参阅第 5 页

  模块化设计的电动放大器类型 VT 11118(单独订购),

三通减压阀类型 3 DREP 6.. 由比例线圈直接操作。它用于将电气输入信号转化为比例压力输出信号。比例线圈是带湿式柱销的可控直流线圈,带对中螺纹和可拆卸线圈。这些线圈可选择性地由外部控制电子元件(类型 3DREP)或内部控制电子元件(类型 3DREPE)进行驱动。

设置:

阀基本构成包括:

– 带安装面的阀体(1)

– 控制阀芯(2),带压力测量阀芯(3,4)

– 带对中螺纹的线圈(5,6)

– 可选集成控制电子元件(7)

功能:

通过比例线圈设置 A 或 B 中的压力。具体压力取决于电流。线圈(5,6)断电后,控制阀芯(2)将通过压缩弹簧(8)保持在中心位置。油口 A 和 B 连接到 T,以便液压油可以不受阻挡地流入油箱。通过为比例线圈(例如线圈 "a"(5))通电,压力测量阀芯 (3)和控制阀芯(2)将向右移动。这样将通过具有渐进流量特性的节流截面,打开从 P 到 B 及从 A 到 T 的连接。在通道 B 中形成的压力以压力测量阀芯(4)的表面作用于控制阀芯,并与磁力相反。压力测量阀芯(4)受线圈 "b" 支撑。如果压力超过线圈 "a" 上设置的值,将逆磁力方向回推控制阀芯 (2),并建立 B 与 T 的连接,直到重新获得设置的压力。压力与线圈电流成比例。在关闭线圈后,控制阀芯(2)将通过压缩弹簧(8)返回中心位置。通过可选的手动操控(9,10),可使控制阀芯(2)在无线圈通电的情况下发生位移。

一般

阀类型3DREP 重量kg 2.0 3DREPE 重量kg 2.2

安装位置任何位置,最好为水平

存储温度范围°C –20 至 +80

环境温度范围°C –20 至 +70 –20 至 +50

推荐型号:

R9003753583DREP6C-1X/16A24N9Z4M

R9003880923DREP6C-1X/25A24N9Z4V

R9004088563DREP6C-1X/25A24NZ4M

R9004088573DREP6C-1X/25A24Z4M

R9004088583DREP6C-1X/25A24NZ4V

R9004088593DREP6C-1X/25A24Z4V

R9004447203DREP6C-1X/45A24N9Z4M

R9004878483DREP6C-1X/25A24N9Z4M

R9004941413DREP6C-1X/16A24Z4M

R9004941433DREP6C-1X/16A24NZ4M

R9004941533DREP6C-1X/16A24K4M

R9004941553DREP6C-1X/16A24NK4M

R9004941653DREP6C-1X/25A24K4M

R9004941673DREP6C-1X/25A24NK4M

R9004941773DREP6C-1X/45A24Z4M

R9004941783DREP6C-1X/45A24NZ4V

R9004941793DREP6C-1X/45A24NZ4M

R9004941893DREP6C-1X/45A24K4M

R9004941903DREP6C-1X/45A24NK4V

R9004941913DREP6C-1X/45A24NK4M

R9004984813DREP6C-1X/25A12NZ4M

R9004984853DREP6C-1X/25A12NK4M

R9005471003DREP6C-1X/25A24N9K4M

R9005500963DREP6C-1X/16A24N9K4M

R9005513303DREP6C-1X/25A24NK4V

R9005594403DREP6C-1X=25A24NZ4M=LB

R9005737503DREP6C-1X/25A24N9K4V

R9005895643DREP6C-1X/16A24N9Z4V

R9007350263DREP6C-2X/25EG24JD/M

R9007374803DREP6C-2X=25EG24JD/M=00

R9007531063DREP6C-2X/25EG24N6K4/M

R9007531073DREP6C-2X=25EG24N6K4/M=00

R9007540623DREP6C-2X/25EG24N9K4/M=PL

R9007549603DREP6C-2X/25EG24N5K4/M

R9007549613DREP6C-2X=25EG24N5K4/M=00

R9007551113DREP6C-2X/25EG24N9K4/M-20

R9007551223DREP6C-2X=25EG24N9K4/M-20=00

R9007551233DREP6C-2X=25EG24K4/M-20=00

R9007690543DREP6C-2X=25EG24N9K4/M-20=PL

R9007775253DREP6C-1X/45A12NK4M

R9009122333DREP6C-1X/45A24N9Z4V

R9009295293DREP6C-2X/25EG24N9K4/V

R9009302673DREP6C-2X=25EG24N9K4/V=00

R9009321543DREP6C-2X/25EG24K4/V

R9009352183DREP6C-2X=25EG24K4/V=00

R9009396563DREP6C-1X/25A24K4V

R9009442313DREP6C-2X/16EG24N9K4/V

R9009442323DREP6C-2X=16EG24N9K4/V=00

R9009450173DREP6C-2X/16EG24N9K4/V-6

R9009450183DREP6C-2X=16EG24N9K4/V-6=00

R9009458283DREP6C-2X=25EG24N9K4/V-589=00

R9009474443DREP6C-2X/45EG24N9K4/V

R9009474453DREP6C-2X=45EG24N9K4/V=00

R9009509043DREP6C-2X=25EG24K4/V-589=00

R9009525073DREP6C-1X/16A24K4V

R9009528363DREP6C-1X/16A24NK4V

R9009544193DREP6C-2X/16EG24K4/M

R9009544203DREP6C-2X/25EG24K4/M

R9009544213DREP6C-2X/45EG24K4/M

R9009544213DREP6C-2X/45EG24K4/M

R9009544943DREP6C-2X=16EG24K4/M=00

R9009544953DREP6C-2X=25EG24K4/M=00

R9009544963DREP6C-2X=45EG24K4/M=00

R9009557963DREP6C-2X/45EG24N9K4/M

R9009558873DREP6C-2X/25EG24N9K4/M

R9009561003DREP6C-2X/16EG24N9K4/M

R9009561013DREP6C-2X=25EG24N9K4/M=00

R9009570263DREP6C-1X/16A24NK4M-6

R9009580363DREP6C-2X=45EG24N9K4/M=00

R9009592513DREP6C-2X/25EG24NJK31/M

R9009594203DREP6C-2X=25EG24N9K4/M=LB

R9009594323DREP6C-1X=25A24NK4M=LB

R9009597413DREP6C-1X/45A24N9K4M

R9009618203DREP6C-2X/25EG24NJK31/V

R9009619463DREP6C-2X=16EG24N9K4/M=00

R9009625493DREP6C-2X=25EG24NJK31/V=00

R9009669913DREP6C-1X/45A24N9K4V

R9009677023DREP6C-2X/45EG24JK31/M

R9009720533DREP6C-2X=25EG24NJK31/M=00

R9009739893DREP6C-1X/16A24N9K4V

R9009749563DREP6C-2X/25EG24JK31/M

R9009753803DREP6C-2X=25EG24JK31/M=00

R9009784823DREP6C-2X/16EG24K4/V

R9009785533DREP6C-2X=16EG24K4/V=00

R9010087473DREP6C-2X=25EG24NK4/M-20=00

R9010089533DREP6C-2X=25EG24NK4/M-20=PL

R9010157963DREP6C-2X=25EG24JK31/V=00

R9010157973DREP6C-2X/25EG24JK31/V

R9010476983DREP6C-2X=25EG24N6JK31/M=00

R9010476993DREP6C-2X/25EG24N6JK31/M

R9011081143DREP6C-2X=45EG24NJK31/M=00

R9011081173DREP6C-2X/45EG24NJK31/M

R9011137323DREP6C-2X=25EG24N6JK10/V-899=00

R9011137353DREP6C-2X/25EG24N6JK10/V-899

R9011956263DREP6C-2X=25EG24K4/M-674=00

R9011956273DREP6C-2X/25EG24K4/M-674

R9012059873DREP6C-2X/25EG24N9K4/M-674

R9012059903DREP6C-2X=25EG24N9K4/M-674=00

R9012278753DREP6C-2X/25EG24N9K4/V-674

R9012278793DREP6C-2X=25EG24N9K4/V-674=00
