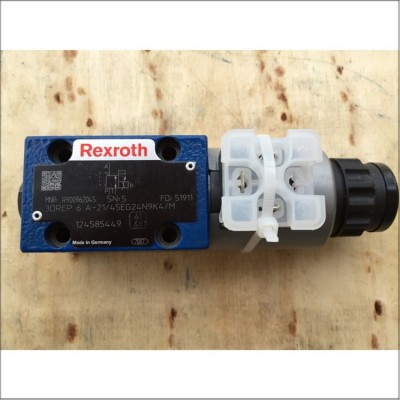

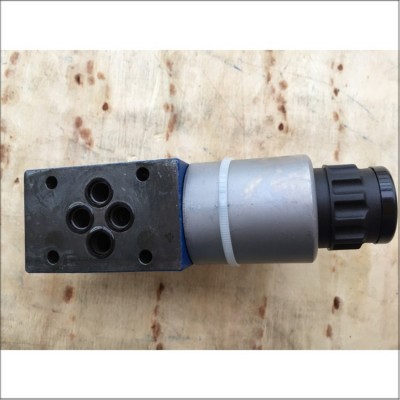

厦门供应 全新原装 力士乐 阀 3DREP6A-21 45EG24N9K4 M
咨询电话:18965852209 资询QQ:2277643779 (小崔)
类型 3DREP 和 3DREPE 比例减压阀,三通型号
规格 6
组件系列 2X
最大工作压力 100 bar
最大流量 15 l/min
– 直动式比例阀用于控制压力和流向
– 通过带对中螺纹和可拆卸线圈的比例线圈进行操作
– 底板安装:安装面符合 ISO 4401
– 手动操控,可选
– 弹簧对中控制阀芯
– 类型 3DREPE 带集成控制电子元件
– 类型 3DREP 的外部控制电子元件:
模拟放大器类型 VT-VSPA2-1-2X/…,采用欧洲板卡标准
(单独订购),请参阅第 5 页
数字放大器类型 VT-VSPD-1-1X/…,采用欧洲板卡标准
(单独订购),请参阅第 5 页
模块化设计的电动放大器类型 VT 11118(单独订购),
三通减压阀类型 3 DREP 6.. 由比例线圈直接操作。它用于将电气输入信号转化为比例压力输出信号。比例线圈是带湿式柱销的可控直流线圈,带对中螺纹和可拆卸线圈。这些线圈可选择性地由外部控制电子元件(类型 3DREP)或内部控制电子元件(类型 3DREPE)进行驱动。
设置:
阀基本构成包括:
– 带安装面的阀体(1)
– 控制阀芯(2),带压力测量阀芯(3,4)
– 带对中螺纹的线圈(5,6)
– 可选集成控制电子元件(7)
功能:
通过比例线圈设置 A 或 B 中的压力。具体压力取决于电流。线圈(5,6)断电后,控制阀芯(2)将通过压缩弹簧(8)保持在中心位置。油口 A 和 B 连接到 T,以便液压油可以不受阻挡地流入油箱。通过为比例线圈(例如线圈 "a"(5))通电,压力测量阀芯 (3)和控制阀芯(2)将向右移动。这样将通过具有渐进流量特性的节流截面,打开从 P 到 B 及从 A 到 T 的连接。在通道 B 中形成的压力以压力测量阀芯(4)的表面作用于控制阀芯,并与磁力相反。压力测量阀芯(4)受线圈 "b" 支撑。如果压力超过线圈 "a" 上设置的值,将逆磁力方向回推控制阀芯 (2),并建立 B 与 T 的连接,直到重新获得设置的压力。压力与线圈电流成比例。在关闭线圈后,控制阀芯(2)将通过压缩弹簧(8)返回中心位置。通过可选的手动操控(9,10),可使控制阀芯(2)在无线圈通电的情况下发生位移。
一般
阀类型3DREP 重量kg 2.0 3DREPE 重量kg 2.2
安装位置任何位置,最好为水平
存储温度范围°C –20 至 +80
环境温度范围°C –20 至 +70 –20 至 +50
推荐型号:
R900608423 3DREP6A-2X=45EG24N9K4/ML=00
R900617936 3DREP6A-2X/45EG24N9K4/ML
R900714944 3DREP6A-2X=16EG24K4/V=00
R900945686 3DREP6A-2X/25EG24K4/V
R900945801 3DREP6A-2X/25EG24N9K4/V
R900945836 3DREP6A-2X=25EG24K4/V=00
R900949625 3DREP6A-2X=25EG24N9K4/V=00
R900954411 3DREP6A-2X/16EG24K4/V
R900954417 3DREP6A-2X/25EG24K4/M
R900954418 3DREP6A-2X/45EG24K4/M
R900954474 3DREP6A-2X/16EG24K4/M
R900954491 3DREP6A-2X=16EG24K4/M=00
R900954492 3DREP6A-2X=25EG24N9K4/M=00
R900954493 3DREP6A-2X=45EG24K4/M=00
R900955803 3DREP6A-2X/25EG24N9K4/M
R900959129 3DREP6A-2X/45EG24N9K4/V
R900960654 3DREP6A-2X=45EG24N9K4/V=00
R900962045 3DREP6A-2X/45EG24N9K4/M
R900962057 3DREP6A-2X=45EG24N9K4/M=00
R900967209 3DREP6A-2X/16EG24N9K4/V
R900967212 3DREP6A-2X=16EG24N9K4/V=00
R900967983 3DREP6A-2X=25EG24K4/M=00
R900974816 3DREP6A-2X/16EG24N9K4/M
R900974818 3DREP6A-2X=16EG24N9K4/M=00
R901087988 3DREP6A-2X/16EG24N9K4/M-596
R901088243 3DREP6A-2X=16EG24N9K4/M-596=00
R901224433 3DREP6A-2X=25EG24N9K4/M-674=00
R901224470 3DREP6A-2X=45EG24N9K4/M-674=00
R901224475 3DREP6A-2X/45EG24N9K4/M-674
R901224524 3DREP6A-2X/25EG24N9K4/M-674=TE
R901224634 3DREP6A-2X/25EG24N9K4/M-674
R901279569 3DREP6A-2X/25EG24N9K4/M-596
R901279571 3DREP6A-2X=25EG24N9K4/M-596=00
R901323921 3DREP6A-2X/45EG24NJK31/V
R901393244 3DREP6A-2X=45EG24N9K4/M
R901395467 3DREP6A-2X/45EG24JK31/V
R901411436 3DREP6A-2X/16EG24K4/M-674
R901418347 3DREP6A-2X/25EG24N9K4/V-674
R901418765 3DREP6A-2X/45EG24N9K4/V-674
