日本 hokuyo 北阳 光电开关 光电传感器 激光测距PGL-050W3图1

日本 hokuyo 北阳 光电开关 光电传感器 激光测距PGL-050W3

2021-09-23 15:103650询价

价格:¥0.00/件

品牌:hokuyo

发货:3天内

发送询价

日本 hokuyo 北阳

翻译结果

光电开关 新的 180m 距离 激光测距 长距离型激光传感器 PGL-050W3:直接反射50m PGL-180W3:回归反射180m*1 *1直接反射为100m

产品特点:
高精度:精度±3Mm,重复精度±0.7mm
长距离:PGL-050W3: Direct reflection 50m
               PGL-180W3: Retro-reflection 180m*1
                *1Direct reflection is 100m
有距离数据输出和距离设定输出两种模式。
可提供RS232C、RS422、RS485、SSI等多种接口。
可以通过USB接口设定传感器参数。


High accuracy and Long distance.
Laser Distance Sensor
It has two operation modes, distance data output and distance setting output.


High accuracy

Accuracy ± 3mm
Repeated accuracy ± 0.7mm

Long distance

PGL-050W3: Direct reflection 50m
PGL-180W3: Retro-reflection 180m*1
*1Direct reflection is 100m

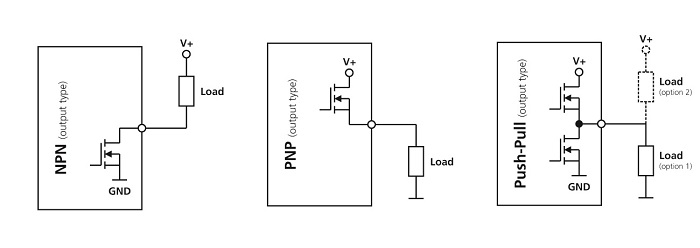

Two points of distance setting output

It has a transistor output which outputs at a distance set in two stages.
Switchable to PNP, NPN and Push-pull with one unit.
It is not necessary to select model by output type.

Distance setting output hysteresis

Hysteresis can be set in 0.1mm increments for distance setting output.

Filter function

It has a moving average filter, a spike suppression filter and an error suppression filter.
It is strong against noise or error data.

Interface

Various interface is available such as RS232C, RS422, RS485 and SSI.
