厦门供应 全新原装 力士乐 放大板 VT-VSPA1-525-10 VO RTP

2024-11-22 09:082820询价

价格:¥0.00/件

品牌:力士乐

12:42

214:21

4:412

发货:3天内

发送询价

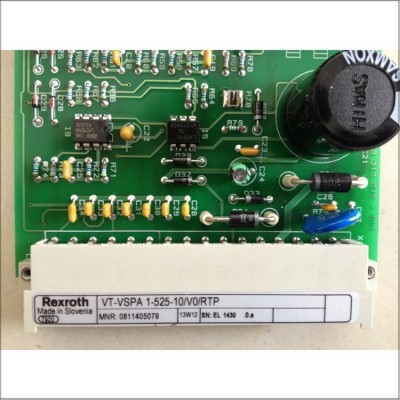

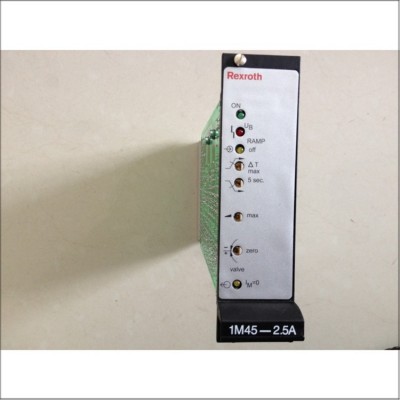

厦门供应 全新原装\力士乐\放大板\VT-VSPA1-525-10 VO RTP

咨询电话:18965852209   资询QQ2277643779  (小崔)

电气放大器 类型 VT-VSPA1-5..-1X/V0/RTP 组件系列 1X

特点

– 适用于控制不带电气反馈的直动式比例阀

– 用于安装在 19 英寸机架上的欧洲格式的模拟放大器

– 控制值电压 0...+10 V 的差动输入

– 斜坡函数发生器上斜坡和下斜坡可以单独设置

– 零位电位计

– 可控输出级

– LED 显示:

? 电源电压

? 准备就绪

? 斜坡"关"

? 线圈电流 IM = 0

注意事项:

图片所示的是示例配置。

实际交付的产品与图片会有所差异。

首选类型

放大器类型物料号用于不带电气反馈的直动式比例阀

VT-VSPA1-525-10/V0/RTP 0811405079 DBETX-1X...-25...

DBE6X-1X...-25...

3(2)FREX...-1X...-25...

VT-VSPA1-508-10/V0/RTP 0811405081 DBETX-1X...-8...

DRE10Z-1X...-8...

DRE6X-1X...-8...

DBE6X-1X...-8...

DBE10Z-1X...-8...

技术数据(有关这些参数之外的应用,请务必向我们咨询!)

电源电压公称电压 24 V =

电池电压 21...40 V,

整流后的交流电压 Ueff = 21...28 V(单相,全波整流器)

滤波电容器,单独 建议:电容模块 VT 11110(请参阅样本 30750)

(只有当 UB 的波动值 > 10 % 时方可使用)

最大电流消耗0811405079 1.5 A(规格 6),2.5 A(规格 10)

0811405081 1.25 A

最大功耗0811405079 35 VA(规格 6),60 VA(规格 10)

0811405081 30 VA

控制值电位计RL ≧ 1 kΩ

电源:b/z 32,+10 V/20 mA

输入信号b10:+10 V

z10:+10 V

z16:+10 V

z18:差动 0 V } 差动输入

外部斜坡时间关闭b20:6...40 V =(公称电压为 10 V)

监视器信号斜坡z20:0...10 V

放大器与阀之间的电缆长度线圈电缆: 最长 20 m 1.5 mm2

20 至 60 m 2.5 mm2

主要特点输入和输出防短路,

脉冲调制输出级,

在较短的驱动时间内快速激励

LED 显示黄色: 斜坡关,

黄色: 线圈电流 IM = 0,

绿色: UB 开,

红色: UB < UB 最小

阀设置时间50 ms/100 信号阶跃

阀门迟滞 % < 4

斜坡时间 s 0.05...5

调节阀零位,灵敏度,斜坡时间,颤振电流振幅

印刷电路板的格式 mm (100 x 160 x 大约 35)/(W x L x H)

使用面板为 7 TE 的欧洲格式

插入式连接连接器 DIN 41612 – F32

环境温度 °C 0...+70

存储温度范围 °C –20...+70

重量 m 0.32 kg

注意事项:

将桥接电源零位 b2 和控制零位 b12。

如果与供电设备的距离 < 1 m,则直接连接到 DIN 连接器上。

如果距离 > 1 m,则将控制零位单独接地。

调节板卡

零电位: 对于调节,指定控制值 UE ~ 300 mV。

灵敏度(最大): 对于调节,指定控制值 UE = 10 V。

使用斜坡

各通过 1 个微调电位计设置"上"斜坡(加速)和"下"斜坡(制动)。

如果在 b20 处打开,则斜坡开。如果 b20 U > 6 V,则斜坡关。

当斜坡关时,先前启动的斜坡将被取消。

转换为信号端值的过程将受到阶跃的影响。

项目规划/维护说明/附加信息

– 放大器板卡只有在断电后才能进行插拔。

– 与天线,无线电设备和雷达系统的距离必须足够(> 1 m)。

– 切勿在电力电缆附近铺设线圈和信号电线。

– 我们推荐使用屏蔽电缆作为信号线和线圈导线。

电缆屏蔽必须集中连接至控制柜,长度越短越好。

– 不能将阀线圈连接至自震荡二极管或其它保护电路。

– 电缆长度和横截面必须遵照第 4 页中的规定。
