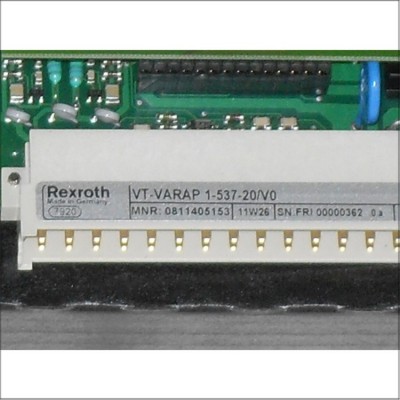

厦门供应 全新原装\力士乐\放大板\0811405153 VT-VARAP1-537-20 V0
闭环控制放大器 类型 VT-VARAP1 组件系列 2X
特点
– 适用于控制直动式和先导式控制阀
– 带附加电子板卡（子卡）的放大器
– 用于安装在 19 英寸机架上的欧洲格式的模拟放大器
– 带 PID 特性的阀位置控制
– 带外部压力负载单元的压力控制
– 可控输出级
– 选通输入
– 防短路输出
– 调节方式 - 零位阀
– 具有较短启动时间的快速通电和快速断电
– 外部控制器切断
– 适用于压力传感器（1...6 V，0...10 V，4...20 mA），
请参阅样本 30271
注意事项：
图片所示的是示例配置。
实际交付的产品与图片会有所差异。
放大器类型物料号用于带电气位置反馈的高频响阀
VT-VARAP1-527-20/V0 0811405152 4WRPH6...
VT-VARAP1-537-20/V0 0811405153 4WRPH10...
VT-VARAP1-537-20/V0/5/3V 0811405154 5WRP10...
VT-VARAP1-527-20/V0/2STV 0811405155 4WRL...
VT-VARAP1-527-20/V0/3/2VAX 0811405156 3WRCBH25...50...
技术数据（有关超出这些参数范围的应用，请向我们咨询！）
z2 – b2 处的电源电压 UB 公称电压 24 V =
电池电压 21...40 V，
整流后的交流电压 Ueff = 21...28 V
（单相，全波整流器）
分别位于 z2 – b2 处的滤波电容器建议：电容模块 VT 11110（请参阅样本 30750）
（仅当 UB 的波动值 > 10 % 时可用）
最大阀线圈 A/VA 2.7/40（规格 6） 3.7/60（规格 10）
最大电流消耗 A 1.7 2.7
电流消耗可能会随最小 UB 和到控制线圈的极限电缆长度增加。
功耗（典型） W 37 55
输入信号（控制值） b20：0...±10 V
z20：0...±10 V ｝ 差动放大器
（Ri = 100 kΩ ）
输入信号（控制值 p） z12：0...10 V
z10：0 V ｝ 差动放大器
压力传感器的实际值z14：4...20 mA – 电流输入
b16：0...+10 V/1...+6 V – 电压输入
b18：0 V – 参考
压力控制器关闭b10：6...40 V =
外部查询压力控制器起作用z24：最大 24 V/0.1 A
限制频率用于频率 ≦ 30 Hz 的应用
信号源电位计 10 kΩ
b32，z32（10 mA）的电源 ±10 V 或外部信号源
启用输出级在 z16 处，U = 8.5...40 V，Ri = 100 kΩ，前板上的 LED（绿色）亮起
传感器电源z6：+15 V/35 mA，Ri ~ 25 Ω
位置传感器电源b30：–15 V（25 mA）
z30：+15 V（35 mA）
先导控制阀实际值信号b22：0...±10 V，RL = 10 kΩ/参考 b24
主级实际值参考位b26：0...±10 V，RL = 10 kΩ/参考 b28
线圈输出
b6 – b8 I最大
定时电流控制器
2.7 A 3.7 A
放大器与阀之间的电缆长度线圈电缆： 小于 20 m，1.5 mm2
20 至 60 m，2.5 mm2
位置传感器： 4 x 0.5 mm2（已屏蔽）
压力传感器： 4 x 0.5 mm2（已屏蔽）
主要特点实际值电缆的电缆断连防护，
带有 PID 特性的位置控制，
脉冲输出级，
具有较短启动时间的快速通电和快速断电，
防短路输出，
控制器切断
调节通过微调电位计进行 ±5 %
的零点调节控制值衰减器 Q
压力控制器 KP，KI 和 KD
灵敏度压力负载单元
零点压力负载单元
LED 显示绿色： 启用
黄色： 位置传感器电缆断连
红色： 电源电压（UB 过低）
黄色： 压力控制器关闭
黄色： 压力控制器运行中当
两个黄色 LED 都闪烁时：压力传感器电缆断连
详细请索取样本资料
