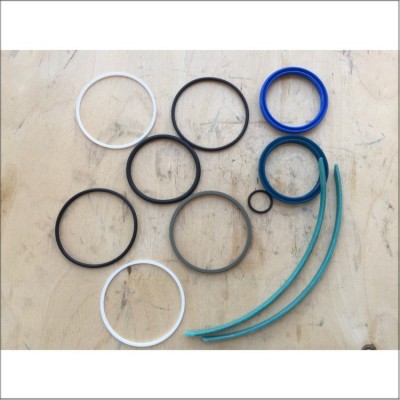

厦门供应 全新原装 力士乐 油缸 R961008038油缸密封件图1厦门供应 全新原装 力士乐 油缸 R961008038油缸密封件图2

厦门供应 全新原装 力士乐 油缸 R961008038油缸密封件

2024-11-21 10:172140询价

价格:¥0.00/件

品牌:力士乐

4:4

24:24

24:3

发货:3天内

发送询价

厦门供应 全新原装 力士乐 油缸 R961008038油缸密封件

液压缸拉杆型

CDT3…Z;CGT3…Z;CST3…Z 系列 ;组件系列 2X ;公称压力 160 bar(16 MPa)

特点 - 安装尺寸符合 ISO 6020-2,DIN 24554 和 NF/ISO 6020-2 - 13 种安装类型 - 活塞直径(?AL):25 至 200 mm - 活塞杆直径(?MM):12 至 140 mm - 行程长度可达 2700 mm - 集成式导向套有助于轻松快捷的维护

 - 可以选择自调节或可调节端位置缓冲 - 获得专利的安全排气阀有助于轻松而安全地进行排气 - 在缸头和缸底处,管路连接的位置可自由选择,因而有助于轻松地完成装配工作

技术数据(有关这些参数之外的应用,请务必向我们咨询!)

特点 - 安装尺寸符合 ISO 6020-2,DIN 24554 和 NF/ISO 6020-2 - 13 种安装类型 - 活塞直径(?AL):25 至 200 mm - 活塞杆直径(MM):12 至 140 mm - 行程长度可达 2700 mm - 集成式导向套有助于轻松快捷的维护

 - 可以选择自调节或可调节端位置缓冲 - 获得专利的安全排气阀有助于轻松而安全地进行排气 - 在缸头和缸底处,管路连接的位置可自由选择,因而有助于轻松地完成装配工作 ;公称压力: 160 bar(16 MPa)

最大工作压力(仅适用于静态负载): 210 bar(21 MPa)静态测试压力: 240 bar(24 MPa)此系列的液压缸旨在用于公称压力为 160 bar,CD 型号承受静态负载时最大工作压力为 210 bar 的情况。(静态负载:整个使用寿命期间加载次数小于 10,000)在最大振幅和振荡负载的情况下,允许的动态工作压力为最大工作压力的 75 %。

指定的工作压力适用于在超额压力和/或外部负载方面无冲击操作的应用。针对极端的负载(如高工作循环),设计安装元件和螺纹活塞杆连接时必须考虑到其耐用性。最小压力:根据应用情况,为了保证液压缸正常工作,需要规定一个最小压力。在无负载时,对于单杆液压缸的最小压力建议为 20 bar;对于更低的压力和双作用液压缸,请与我们联系。

安装位置:任意液压油:符合 DIN 51524 的矿物油 HL,HLP ;水包油型乳剂 HFA ;水乙二醇l HFCP ;磷酸酯 HFD-R ;最佳粘度范围:20 至 100 mm2/s ;允许的最小粘度:2.8 mm2/s ;允许的最大粘度:380 mm2/s ;清洁度等级符合 ISO ;液压油的最大允许污染度符合 ISO 4406(c)等级 20/18/15。在液压系统中必须满足指定的组件清洁度等级。有效的过滤可防止发生故障,同时还可增加组件的使用寿命。有关过滤器的选择,请咨询;排气:默认情况下底漆层:默认情况下会为液压缸涂上厚度最小 40 μm 的底漆涂层(颜色为龙胆蓝 RAL 5010)。可应要求提供其它颜色。对于液压缸和连接部件,以下面不上底漆或油漆:- 客户端的所有安装端面- 管路连接的密封表面- 法兰连接的密封表面- 位置测量系统阀安装的连接面默认情况下,作为单独订购产品订购的附件均未上底漆或油漆。可应要求上相应的底漆和/或油漆。技术数据(有关这些参数之外的应用,请务必向我们咨询!)边界条件和应用条件: - 必须确保运动轴的机械对准,如此便可确保液压缸和活塞杆的安装点的机械对准。应避免有侧向力作用于活塞杆和活塞的导向环上。可能必须考虑液压缸(MP1,MP3,MP5,MT1,MT2 或 MT4)或活塞杆的自身重量。 - 必须遵守活塞杆和/或液压缸的弯曲长度/弯曲载荷(请参阅"弯曲计算"主题页)。 - 液压油属性方面必须遵守密封件与所用液压油的兼容性,在密封件的适用性/负载方面必须遵守密封件的最大允许运行速度(请参阅"密封件"主题页)。 - 必须遵守移动到末端位置(也会考虑外部负载)时的最大允许速率/动能。危险:超额压力 - 液压缸在任何工作状态下都必须遵守允许的最大工作压力。液压缸的推拉力比是由环形和活塞面积比决定的,同时须考虑相应的流量。 - 应避免有害的环境影响(例如迅速传播的细微颗粒,蒸气,高温等)以及液压油的污染和恶化。注意:上面列出的内容并不完整。如果您有关于与介质的兼容性或超过边界条件或应用条件的问题,请与我们联系。使用寿命:力士乐液压缸符合工业应用的可靠性建议。在活塞杆无负载,最大速率为 0.5 m/s,空载连续运行时为 ≥ 10000000 双行程,或者在最大工作压力的 70 % 时3000 km 活塞行程,其失灵比例小于 5 %。验收:按照力士乐标准和 ISO 10100:2001 测试每个液压缸。

安全说明:

对于液压缸的装配,调试和维护,必须遵守操作说明样本 07100-B!服务和维修工作必须由博世力士乐或针对此目的特别培训的人员来执行。不是由博世力士乐执行装配,维护或维修工作造成的损坏不在保修范围内。液压缸技术规格检查表:特性和/或应用参数与样本中指定的值有所偏差的液压缸只能作为特殊型号应要求提供。对于提供的产品,必须在液压缸的技术规格检查表中说明特性和/或应用参数的偏差(样本 07200)。带双活塞杆的双作用液压缸:使用此设计型号,摩擦会远远高于使用带单活塞杆的 "CD型号"时的摩擦。行程公差:根据 ISO 6020-2,行程高达 1250 mm 时,允许的行程公差为 0/+2 mm;有关更大的行程,请联系我们。可以选择公差 ±0.3 mm,对于拉杆型液压缸而言,更小的公差是不合理的。最小行程:对于 "MT4" 安装,需根据耳轴宽度遵守最小行程使用端位置缓冲时,也务必遵守最小行程。行程长度比缓冲长度小时,建议选择不带端位置缓冲的液压缸。可应要求提供宽度扩展支持和拉杆支持。管路连接:符合 ISO 1179-1 的管螺纹或扩大的管螺纹或者符合ISO 6149-1 的公制 ISO 螺纹与 CDT3/CGT3 系列液压缸一起提供。CGT3 系列液压缸随符合 ISO 1179-1 的管螺纹或底板一起提供。

运行速度:请参阅有关行程长度和运行速度的信息,可应要求提供更高的运行速度。如果活塞杆的驶出速度比驶入速度大很多,则可能造成介质的项目设计软件 ICS(交互式目录系统)软件 ICS(交互式目录系统)是对液压缸进行选择和项目设计的辅助工具。设计人员可以借助于 ICS 通过液压缸型号的逻辑性引导的类型代码的询问,快速可靠地找到针对机器和系统的最佳液压缸解决方案。此软件帮助更迅速更高效地解决设计和项目规划任务。用户被引导完成产品选型后,可以迅速可靠地获得所选组件的精确技术数据,并以所有常见 CAD 系统的正确文件格式获得 2D 和 3D CAD 数据。这使用户能够在降低成本的同时提高竞争力。

7472411364 CDT3ME5/32/22/100F11/B11HDDMWW

7472411365 CDT3MP1/32/22/210F11/B11HFDMWW

7472411366 CDT3ME5/32/22/100F11/B11HFDMWW

7472412780 CDT3ME5/50/22/80F11/B11HHDMWW

7472413111 CDT3ME5/40/18/30F11/B11HHUMWW

7472413335 CDT3ME5/63/28/100F11/B11HHDMWW

7472413397 CDT3MT4/50/22/700F11/B11HHDMWW/120

7472413453 CDT3MP5/63/28/110F11/B22HHDMWW

7472413486 CDT3ME6/32/22/150F11/B11HFDMWW

7472413588 CDT3ME5/63/28/10F11/B11HHUMWW

7472413628 CDT3MP5/50/36/800F11/B11HHUMWW

7472413839 CDT3ME5/80/56/250F11/B11HFDMWW

7472414211 CDT3MP5/32/22/400F11/B11HHUMWW

7472414497 CDT3ME5/40/28/80F11/B11HHUMWW

7472414498 CDT3ME5/32/22/95F11/B11HHLMWW

7472414578 CDT3MS2/32/14/40F11/B11HEUMWW

7472414579 CDT3ME6/63/45/362F11/B11HEDMWW

7472414580 CDT3MT4/40/28/800F11/B11HKDMWW/495

7472414796 CDT3ME5/32/14/80F11/B11HEDMWW

7472414805 CDT3MP5/25/18/150F11/B11HHEMWW

7472414806 CDT3MP5/40/28/340F11/B11HHEMWW

7472414853 CDT3ME5/160/110/450F11/B11HHUMWW

7472414868 CDT3ME5/25/18/30F11/B11HHDMWW

7472414970 CDT3ME6/63/45/120F11/B11HHUMWW

7472415095 CDT3ME5/40/18/110F11/B11HHDMWW

7472415316 CDT3ME5/80/36/100F11/B11HHDMWW

7472415347 CDT3ME5/32/22/100F11/B11HDDMWW

7472415436 CDT3ME5/25/18/150F11/B11HHDMWW

7472415441 CDT3MS2/80/56/400Z11/B1HHUNWW

7472415509 CDT3MP5/50/36/400F11/B11HHUMWW

7472415646 CDT3MX5/40/28/800F11/B11HHDMWW

7472415647 CDT3MS2/40/28/650F11/B11HHDMWW

7472415648 CDT3MX5/40/28/250F11/B11HHDMWW

7472415649 CDT3MX5/40/28/400F11/B11HHDMWW

7472415722 CDT3MP3/40/28/150F11/B11HFDMWW

7472415724 CDT3MS2/40/28/800F11/B11HFEMWW

7472415905 CDT3MP5/40/18/120F11/B11HHDMWW

7472415912 CDT3MP5/63/28/100F11/B11HFDMWW

7472416179 CDT3MP5/32/22/160F11/B11HHDMWW

7472416246 CDT3MP5/50/36/450F11/B11HHDMWW

7472416247 CDT3MP5/50/36/400F11/B11HHDMWW

7472416248 CDT3MT4/50/36/450F11/B11HHDMWW/443

7472416249 CDT3ME5/50/36/950F11/B11HHDMWW

7472416275 CDT3MP5/80/56/800F11/B11HFUMWW

7472416552 CDT3ME5/40/18/10F11/B11HHUMWW

7472416556 CDT3MP5/63/28/35F11/B11HHUMWW

7472416585 CDT3ME5/80/56/60F11/B11HEDMWW

7472416586 CDT3ME5/100/45/60F11/B11HEDMWW

7472416587 CDT3ME5/40/28/50F11/B11HEDMWW

7472416676 CDT3ME5/32/22/400F11/B11HDUMWW

7472416700 CDT3MP5/63/28/35F11/B11HHDMWW

7472416703 CDT3ME6/40/18/110F11/B11HHDMWW

7472416832 CDT3ME6/32/22/80F11/B11HHDMWW

7472416850 CDT3MX5/25/18/160F11/B11HEUMWW

7472416868 CDT3MT4/25/18/145F11/B11HHEMWW/102

7472416875 CDT3MS2/40/18/200F11/B11HHUMWW

7472416876 CDT3MP3/40/18/50F11/B11HHUMWW

7472417073 CDT3MP5/32/14/55F11/B11HFUMWW

7472417091 CDT3ME5/160/110/450F11/B11HHUMWW

7472417115 CDT3ME5/25/18/50F11/B11HHSTWW

7472417177 CDT3MX5/40/28/80F11/B11HHUMWW

7472417266 CDT3MP3/100/70/370F11/B33HFDMAW

7472417267 CDT3MP3/100/70/370F11/B11HFDMAW

7472417287 CDT3ME5/80/36/70F11/B11HHDMWW

7472417386 CDT3MT1/25/18/90F11/B11HHDMWW

7472417469 CDT3MP5/40/28/50F11/B11HFDMWW

7472417470 CDT3MP5/40/28/240F11/B11HFDMWW

7472417594 CDT3MT4/25/18/65F11/B11HHLVWW/74

7472417699 CDT3MP5/32/22/295F11/B11HFDMWW

7472417732 CDT3ME6/63/45/800F11/B11HHUMWW

7472417941 CDT3MP5/50/36/820F11/B11HHUMWW

7472417942 CDT3MP5/25/18/25F11/B11HHKMWW

7472418106 CDT3ME5/63/28/100F11/B11HHDVWW

7472418107 CDT3ME6/100/45/60F11/B11HHDVWW

7472418108 CDT3ME5/100/45/250F11/B11HHDVWW

7472418283 CDT3MX2/80/56/50F11/B11HHUMWW

7472418302 CDT3MP1/100/45/200F11/B11HHUMWW

7472418315 CDT3ME5/50/36/400F11/B11HHDMWW

7472418322 CDT3ME6/63/28/120F11/B11HHUMWW

7472418403 CDT3MP5/32/22/250F11/B22HHUMWW

7472418466 CDT3MP5/40/18/800F11/B11HHDMWW

7472418469 CDT3MP5/40/28/800F11/B11HHDMWW

7472418487 CDT3ME5/80/56/200F11/B11HHUMWW

7472A09632 CDT3MT2/50/36/400F11/X21HXUXWW/F09

7472A09913 CDT3/MP5/40/28/355F11/X11HHUXWW/F09913

7472A10026 CDT3 MX2/32/14/ 115F11/B11HHUVWW

7472A10397 CDT3 MX3/100/45/ 350F11/B44HHDMWW F10397

CDT3 ME5(ISO/DIN/NF)

CDT3 MP5(ISO/DIN/NF)

CDT3 MT4(ISO/DIN/NF)

CDT3 MT2(ISO/DIN/NF)

CDT3 MX2(ISO/DIN/NF)

CDT3 MX5(NF)

CDT3 MP3(ISO/DIN/NF)

CDT3 ME6(ISO/DIN/NF)

CDT3 MS2(ISO/DIN/NF)

CDT3 MT1(ISO/DIN/NF)

CDT3 MX1(ISO/DIN/NF)

CDT3 MX3(ISO/DIN/NF)

CDT3 MP1(ISO/DIN/NF)

注释:

可自由选择耳轴位置;订货时始终以明文形式指定 "XV"尺寸,单位为 mm

非 ISO 标准

安装类型为 MS2,活塞直径为 25 并采用端位置缓冲时,"E" 不可行

活塞直径 25 至 100 mm:仅管路连接 "B" 可行活塞直径 125 至 200 mm:仅 DIN 安装类型和管路连接"B" 可行

不支持安装类型 MX1 和 MX3

(仅支持标准化活塞杆直径22 至 140 mm), 请遵守最大工作压力

请遵守第 5 页上的所提供的最大行程长度和第 52 至 55 页上的允许的行程长度(根据弯曲计算)

(仅支持标准化活塞杆直径18 至 140 mm),请遵守最大工作压力

工作压力为 210 bar 时,请遵守允许的活塞杆直径和位于活塞杆端的已分配螺纹(第 5 页和第 10 至27 页)

工作压力高达 160 bar

工作压力高达 210 bar

不支持 MT1

订货示例:

CDT3MP5/50/36/300Z2X/B11HHDMWW

选择时,请遵守相应目录页的极限!

CGT3 ME5

CGT3 MS2

CGT3 MT4

CGT3 MT1

CGT3 MX1

CGT3 MX3

CGT3 MX5

注释:

可自由选择耳轴位置;订货时始终以明文形式指定 "XV"尺寸,单位为 mm

安装类型为 MS2,活塞直径为 25 并采用端位置缓冲时,

"E" 不可行

活塞直径 25 至 100 mm:仅管路连接 "B" 可行活塞直径 125 至 200 mm:仅 DIN 安装类型和管路连接 "B" 可行

不支持安装类型 MX1 和 MX3

非标准

请参阅第 44 页(仅支持标准化活塞杆直径18 至 140 mm),请遵守最大工作压力

请遵守第 8 页上的所提供的最大行程长度和第 52 至 55页上的允许的行程长度(根据弯曲计算)

不支持 MT1

订货示例:

CGT3ME5/80/56/400Z2X/B11HHDMWW

选择时,请遵守相应目录页的极限!

CST3 ME5

CST3 MS2

CST3 MX5

CST3 MP5

CST3 MT4

注释:

可自由选择耳轴位置;订货时始终以明文形式指定 "XV"尺寸,单位为 mm

仅位置 11 可行

活塞直径仅高达 80 mm

非标准

请遵守第 30 至 39 页提供的最大和最小行程长度,以及第 52 至 55 页的允许行程长度(根据弯曲计算)

仅活塞直径 100 – 200 mm

订货示例:

CST3ME5/50/36/300Z2X/P11HDUTTD

注意:几何形状和尺寸可能会因制造商而有所不同。如果与其它安装元件组合,必须检查可用性。

润滑头锥头形式,符合 DIN 71412,A 型

相关螺栓直径 h6

无法再次进行润滑

可通过润滑孔进行再次润滑

铰接吊环头符合 ISO 8132,相关螺栓直径 m6

尺寸可能会因制造商而与标准尺寸有所不同

MA = 紧固扭矩

铰接吊环头必须始终靠在活塞杆的轴肩上拧紧。然后,必须用指定的紧固扭矩紧固锁紧螺钉。

m = 铰接吊环头的重量(kg)

C0 = 铰接吊环头的静态额定负载

F允许 = 有振荡或交变负载时,铰接吊环头允许的最大负载工作条件和环境条件

密封件型号

介质/温度

介质 HL,HLP/介质工作温度 –20 °C 至 +80 °C ++ ++ ++

介质 HFA/介质工作温度 +5 °C 至 +55 °C +/– ++ +/–

介质 HFC/介质工作温度 –20 °C 至 +60 °C – ++ –

介质 HFD-R/介质工作温度 –15 °C 至 +80 °C – – ++

介质 HFD-U/介质工作温度 –15 °C 至 +80 °C – – ++

活塞杆的环境温度和介质温度从 –20 °C 到 +80 °C 1) ++ + ++ 2)

活塞杆的环境温度和介质温度从 +80 °C 至 +120 °C – – ++

功能/速率...

静态保压功能超过 10 分钟:注意!取决于应用和温度++ + +

短期静态保持功能小于 1 分钟++ ++ ++

恶劣应用条件:钢厂,矿山,冰雪环境++ – –

零位控制,短振幅,频率最大 5 Hz,不超过 5 分钟– ++ ++

液压缸速率最小 0.001 m/s,爬行现象++ ++ ++

液压缸速率从 0.01 m/s 到 0.5 m/s 3) ++ ++ ++

液压缸速率 > 0.5 m/s,至最大 0.8 m/s 3) – ++ ++

行程 > 1.0 m +/– ++ ++

耐磨性++ ++ ++

油中有不溶解的空气 4) – + +

++ = 非常好+ = 好+/– = 根据情况确定,取决于应用参数– = 不适用

一般情况下建议采用大约 40 °C 的介质温度。指定的值被视

为准则;根据应用情况,可能需要检查密封系统的适用性。

相应样本中的一般技术数据仍然有效!

1) 此外,请遵守相应的介质温度范围

2) 温度下限 –15 °C

3) 标准管路连接不用于该速率

4) – 密封件会损毁 / + 密封件未被直接损毁,可能发生泄漏

密封套件

整套密封套件

R961008000 R961008026 R961008052 R961008078 R961008104 R961008130

R961008001 R961008027 R961008053 R961008079 R961008105 R961008131

R961008002 R961008028 R961008054 R961008080 R961008106 R961008132

R961008003 R961008029 R961008055 R961008081 R961008107 R961008133

R961008004 R961008030 R961008056 R961008082 R961008108 R961008134

R961008005 R961008031 R961008057 R961008083 R961008109 R961008135

R961008006 R961008032 R961008058 R961008084 R961008110 R961008136

R961008007 R961008033 R961008059 R961008085 R961008111 R961008137

R961008008 R961008034 R961008060 R961008086 R961008112 R961008138

R961008009 R961008035 R961008061 R961008087 R961008113 R961008139

R961008010 R961008036 R961008062 R961008088 R961008114 R961008140

R961008011 R961008037 R961008063 R961008089 R961008115 R961008141

R961008012 R961008038 R961008064 R961008090 R961008116 R961008142

R961008013 R961008039 R961008065 R961008091 R961008117 R961008143

R961008014 R961008040 R961008066 R961008092 R961008118 R961008144

R961008015 R961008041 R961008067 R961008093 R961008119 R961008145

R961008016 R961008042 R961008068 R961008094 R961008120 R961008146

R961008017 R961008043 R961008069 R961008095 R961008121 R961008147

R961008018 R961008044 R961008070 R961008096 R961008122 R961008148

R961008019 R961008045 R961008071 R961008097 R961008123 R961008149

R961008020 R961008046 R961008072 R961008098 R961008124 R961008150

R961008021 R961008047 R961008073 R961008099 R961008125 R961008151

R961008022 R961008048 R961008074 R961008100 R961008126 R961008152

R961008023 R961008049 R961008075 R961008101 R961008127 R961008153

R961008024 R961008050 R961008076 R961008102 R961008128 R961008154

R961008025 R961008051 R961008077 R961008103 R961008129 R961008155

R961008008 R961008034 R961008060 R961008009 R961008035 R961008061

R961008011 R961008037 R961008063 R961008012 R961008038 R961008064

R961008014 R961008040 R961008066 R961008015 R961008041 R961008067

R961008017 R961008043 R961008069 R961008018 R961008044 R961008070

R961008020 R961008046 R961008072 R961008021 R961008047 R961008073

R961008022 R961008048 R961008074 R961008023 R961008049 R961008075

R961008024 R961008050 R961008076 R961008025 R961008051 R961008077

R961008237 R961008240 R961008156 R961008161 R961008157 R961008162

R961008158 R961008163 R961008159 R961008164 R961008160 R961008165

R961008222 R961008221 R961008223 R961008225 R961008224 R961008226

R961008006 R961008032 R961008058 R961008236 R961008239

整套密封套件

R961008000 R961008026 R961008052 R961008078 R961008104 R961008130

R961008001 R961008027 R961008053 R961008079 R961008105 R961008131

R961008002 R961008028 R961008054 R961008080 R961008106 R961008132

R961008003 R961008029 R961008055 R961008081 R961008107 R961008133

R961008004 R961008030 R961008056 R961008082 R961008108 R961008134

R961008005 R961008031 R961008057 R961008083 R961008109 R961008135

R961008006 R961008032 R961008058 R961008084 R961008110 R961008136

R961008007 R961008033 R961008059 R961008085 R961008111 R961008137

R961008008 R961008034 R961008060 R961008086 R961008112 R961008138

R961008009 R961008035 R961008061 R961008087 R961008113 R961008139

R961008010 R961008036 R961008062 R961008088 R961008114 R961008140

R961008011 R961008037 R961008063 R961008089 R961008115 R961008141

R961008012 R961008038 R961008064 R961008090 R961008116 R961008142

R961008013 R961008039 R961008065 R961008091 R961008117 R961008143

R961008014 R961008040 R961008066 R961008092 R961008118 R961008144

R961008015 R961008041 R961008067 R961008093 R961008119 R961008145

R961008016 R961008042 R961008068 R961008094 R961008120 R961008146

R961008017 R961008043 R961008069 R961008095 R961008121 R961008147

R961008018 R961008044 R961008070 R961008096 R961008122 R961008148

R961008019 R961008045 R961008071 R961008097 R961008123 R961008149

R961008020 R961008046 R961008072 R961008098 R961008124 R961008150

R961008021 R961008047 R961008073 R961008099 R961008125 R961008151

R961008022 R961008048 R961008074 R961008100 R961008126 R961008152

R961008023 R961008049 R961008075 R961008101 R961008127 R961008153

R961008024 R961008050 R961008076 R961008102 R961008128 R961008154

R961008025 R961008051 R961008077 R961008103 R961008129 R961008155

R961008006 R961008032 R961008058

R961008008 R961008034 R961008060

R961008009 R961008035 R961008061

R961008011 R961008037 R961008063

R961008012 R961008038 R961008064

R961008014 R961008040 R961008066

R961008015 R961008041 R961008067

R961008017 R961008043 R961008069

R961008018 R961008044 R961008070

R961008020 R961008046 R961008072

R961008021 R961008047 R961008073

R961008022 R961008048 R961008074

R961008023 R961008049 R961008075

R961008024 R961008050 R961008076

R961008025 R961008051 R961008077

R961008236 R961008239

R961008237 R961008240

R961008156 R961008161

R961008157 R961008162

R961008158 R961008163

R961008159 R961008164

R961008160 R961008165

R961008222 R961008221

R961008223 R961008225

R961008224 R961008226

R900303162         R900303163         R900303164

R900303165         R900303166         R900303167

R900303168         R900303169         R900321655

R900321691         R900321621         R900321621

R900322015         R900303137         R900303138

R900303139         R900303140         R900303141

R900303142         R900303143         R900303144

R900303145         R900303146         R900303147

R900303147         R900303148         R900317314

密封套件

CDH1 – 标准

R900850072 R961006000 R961006035 R961006070 R900860270 R900859816 R900849536 R961006105 R900861000

R900851087 R961006002 R961006037 R961006072 R900859445 R900859770 R900858841 R961006107 R900861001

R900850181 R961006003 R961006038 R961006073 R900860928 R900860938 R900857535 R961006108 R900861002

R900849392 R961006005 R961006040 R961006075 R900851515 R900860940 R900860277 R961006110 R900861004

R900850191 R961006006 R961006041 R961006076 R900860930 R900851206 R900860278 R961006111 R900861005

R900847956 R961006008 R961006043 R961006078 R900851638 R900859678 R900847855 R961006113 R900861007

R900851086 R961006009 R961006044 R961006079 R900854708 R900860942 R900860280 R961006114 R900861008

R900850905 R961006011 R961006046 R961006081 R900854718 R900851205 R900856180 R961006116 R900861010

R900853936 R961006012 R961006047 R961006082 R900860470 R900860944 R900860282 R961006117 R900861011

R900853382 R961006014 R961006049 R961006084 R900856094 R900860946 R900860285 R961006119 R900861013

R900853966 R961006015 R961006050 R961006085 R900854709 R900860948 R900860286 R961006120 R900861014

R900857949 R961006017 R961006052 R961006087 R900856095 R900855464 R900856102 R961006122 R900861016

R900858281 R961006018 R961006053 R961006088 R900860932 R900860951 R900860289 R961006123 R900861017

R900853965 R961006019 R961006054 R961006089 R900856096 R900860952 R900860290 R961006124 R900849080

R900855683 R961006020 R961006055 R961006090 R900860468 R900860953 R900860291 R961006125 R900861018

R900851146 R961006021 R961006056 R961006091 R900860933 R900860954 R900857536 R961006126 R900861019

R900856497 R961006023 R961006058 R961006093 R900860934 R900860955 R900852561 R961006128 R900861020

R900848603 R961006024 R961006059 R961006094 R900860935 R900860956 R900860292 R961006129 R900861021

R900860294 R961006025 R961006060 R961006095 R900860936 R900860957 R900860295 R961006130 R900861022

R900856431 R961006026 R961006061 R961006096 R900860937 R900860958 R900860293 R961006131 R900861023

R900888100 R961006027 R961006062 R961006097 R900888116 R900888140 R900888108 R961006132 R900888132

R900888101 R961006028 R961006063 R961006098 R900888117 R900888141 R900888109 R961006133 R900888133

R900888102 R961006029 R961006064 R961006099 R900888118 R900888142 R900888110 R961006134 R900888134

R900888103 R961006030 R961006065 R961006100 R900888119 R900888143 R900888111 R961006135 R900888135

R900888104 R961006031 R961006066 R961006101 R900888120 R900888144 R900888112 R961006136 R900888136

R900888105 R961006032 R961006067 R961006102 R900888121 R900888145 R900888113 R961006137 R900888137

R900888106 R961006033 R961006068 R961006103 R900888122 R900888146 R900888114 R961006138 R900888138

R900888107 R961006034 R961006069 R961006104 R900888123 R900888147 R900888115 R961006139 R900888139

密封套件

CGH1 – 标准

R900867251 R961006221 R961006256 R961006291 R900866746 R900867132 R900868888 R961006326 R900868942

R900867252 R961006223 R961006258 R961006293 R900866747 R900867133 R900868889 R961006328 R900868943

R900867253 R961006224 R961006259 R961006294 R900866748 R900867134 R900868890 R961006329 R900868944

R900864930 R961006226 R961006261 R961006296 R900866750 R900867136 R900868892 R961006331 R900868946

R900867260 R961006227 R961006262 R961006297 R900866751 R900867137 R900868893 R961006332 R900868947

R900867262 R961006229 R961006264 R961006299 R900866753 R900867139 R900868895 R961006334 R900868949

R900867263 R961006230 R961006265 R961006300 R900866754 R900867140 R900868896 R961006335 R900868950

R900867265 R961006232 R961006267 R961006302 R900866756 R900867142 R900868898 R961006337 R900868952

R900867266 R961006233 R961006268 R961006303 R900866757 R900867143 R900868899 R961006338 R900868953

R900867268 R961006235 R961006270 R961006305 R900866759 R900867146 R900868901 R961006340 R900868955

R900867269 R961006236 R961006271 R961006306 R900866760 R900867147 R900868902 R961006341 R900867906

R900867270 R961006238 R961006273 R961006308 R900866762 R900867149 R900868904 R961006343 R900868957

R900867271 R961006239 R961006274 R961006309 R900866763 R900867150 R900868905 R961006344 R900868958

R900867272 R961006240 R961006275 R961006310 R900866764 R900867151 R900868906 R961006345 R900868959

R900867273 R961006241 R961006276 R961006311 R900866765 R900867152 R900868907 R961006346 R900868960

R900867274 R961006242 R961006277 R961006312 R900866766 R900867153 R900868908 R961006347 R900868961

R900867275 R961006244 R961006279 R961006314 R900866767 R900867154 R900868909 R961006349 R900868962

R900867276 R961006245 R961006280 R961006315 R900866768 R900867155 R900868910 R961006350 R900868963

R900867277 R961006246 R961006281 R961006316 R900866769 R900867156 R900868911 R961006351 R900868964

R900867278 R961006247 R961006282 R961006317 R900866770 R900867157 R900868912 R961006352 R900868965

R900888020 R961006248 R961006283 R961006318 R900888036 R900888060 R900888028 R961006353 R900888052

R900888021 R961006249 R961006284 R961006319 R900888037 R900888061 R900888029 R961006354 R900888053

R900888022 R961006250 R961006285 R961006320 R900888038 R900888062 R900888030 R961006355 R900888054

R900888023 R961006251 R961006286 R961006321 R900888039 R900888063 R900888031 R961006356 R900888055

R900888024 R961006252 R961006287 R961006322 R900888040 R900888064 R900888032 R961006357 R900888056

R900888025 R961006253 R961006288 R961006323 R900888041 R900888065 R900888033 R961006358 R900888057

R900888026 R961006254 R961006289 R961006324 R900888042 R900888066 R900888034 R961006359 R900888058

R900888027 R961006255 R961006290 R961006325 R900888043 R900888067 R900888035 R961006360 R900888059

密封套件

CDH1 – 标准 + 附加选件 F

R900861024 R961006140 R961006167 R900861049 R961006194 R900861099

R900861025 R961006142 R961006169 R900861050 R961006196 R900861100

R900861026 R961006143 R961006170 R900861051 R961006197 R900861101

R900861028 R961006145 R961006172 R900861053 R961006199 R900861103

R900861029 R961006146 R961006173 R900861054 R961006200 R900861104

R900861031 R961006148 R961006175 R900861056 R961006202 R900861106

R900861032 R961006149 R961006176 R900861057 R961006203 R900861107

R900861034 R961006151 R961006178 R900861059 R961006205 R900861109

R900861035 R961006152 R961006179 R900861060 R961006206 R900861112

R900861037 R961006154 R961006181 R900861062 R961006208 R900861115

R900861038 R961006155 R961006182 R900861063 R961006209 R900861117

R900861040 R961006157 R961006184 R900861065 R961006211 R900861122

R900861041 R961006158 R961006185 R900861066 R961006212 R900861124

R900861042 R961006159 R961006186 R900861067 R961006213 R900861126

R900861043 R961006160 R961006187 R900861068 R961006214 R900861128

R900861044 R961006161 R961006188 R900861069 R961006215 R900861130

R900861045 R961006163 R961006190 R900861070 R961006217 R900861133

R900861046 R961006164 R961006191 R900861071 R961006218 R900861135

R900861047 R961006165 R961006192 R900861072 R961006219 R900861142

R900861048 R961006166 R961006193 R900861073 R961006220 R900861143

CGH1 – 标准 + 附加选件 F

R900868998 R961006361 R961006388 R900869025 R961006415 R900869092

R900868999 R961006363 R961006390 R900869026 R961006417 R900869093

R900869000 R961006364 R961006391 R900869027 R961006418 R900869094

R900869002 R961006366 R961006393 R900869029 R961006420 R900869096

R900869003 R961006367 R961006394 R900869030 R961006421 R900869097

R900869005 R961006369 R961006396 R900869032 R961006423 R900869099

R900869006 R961006370 R961006397 R900869033 R961006424 R900869100

R900869008 R961006372 R961006399 R900869035 R961006426 R900869102

R900869009 R961006373 R961006400 R900869036 R961006427 R900869103

R900869013 R961006375 R961006402 R900869038 R961006429 R900869105

R900869014 R961006376 R961006403 R900869039 R961006430 R900869106

R900869016 R961006378 R961006405 R900869041 R961006432 R900869108

R900869017 R961006379 R961006406 R900869042 R961006433 R900869109

R900869018 R961006380 R961006407 R900869043 R961006434 R900869110

R900869019 R961006381 R961006408 R900869044 R961006435 R900869111

R900869020 R961006382 R961006409 R900869045 R961006436 R900869112

R900869021 R961006384 R961006411 R900869046 R961006438 R900869113

R900869022 R961006385 R961006412 R900869047 R961006439 R900869114

R900869023 R961006386 R961006413 R900869048 R961006440 R900869115

R900869024 R961006387 R961006414 R900869049 R961006441 R900869116

密封套件

R900861025 R961006142 R961006169 R961006072 R900861050 R961006196 R900861100

R900861026 R961006143 R961006170 R961006073 R900861051 R961006197 R900861101

R900861028 R961006145 R961006172 R961006075 R900861053 R961006199 R900861103

R900861029 R961006146 R961006173 R961006076 R900861054 R961006200 R900861104

R900861031 R961006148 R961006175 R961006078 R900861056 R961006202 R900861106

R900861032 R961006149 R961006176 R961006079 R900861057 R961006203 R900861107

R900861034 R961006151 R961006178 R961006081 R900861059 R961006205 R900861109

R900861035 R961006152 R961006179 R961006082 R900861060 R961006206 R900861112

R900861037 R961006154 R961006181 R961006084 R900861062 R961006208 R900861115

R900861038 R961006155 R961006182 R961006085 R900861063 R961006209 R900861117

R900861040 R961006157 R961006184 R961006087 R900861065 R961006211 R900861122

R900861041 R961006158 R961006185 R961006088 R900861066 R961006212 R900861124

R900861042 R961006159 R961006186 R961006089 R900861067 R961006213 R900861126

R900861043 R961006160 R961006187 R961006090 R900861068 R961006214 R900861128

R900861044 R961006161 R961006188 R961006091 R900861069 R961006215 R900861130

R900861045 R961006163 R961006190 R961006093 R900861070 R961006217 R900861133

R900861046 R961006164 R961006191 R961006094 R900861071 R961006218 R900861135

R900861047 R961006165 R961006192 R961006095 R900861072 R961006219 R900861142

R900861048 R961006166 R961006193 R961006096 R900861073 R961006220 R900861143

R900888100 R961006027 R961006062 R961006097 R900888108 R961006132 R900888132

R900888101 R961006028 R961006063 R961006098 R900888109 R961006133 R900888133

R900888102 R961006029 R961006064 R961006099 R900888110 R961006134 R900888134

R900888103 R961006030 R961006065 R961006100 R900888111 R961006135 R900888135

R900888104 R961006031 R961006066 R961006101 R900888112 R961006136 R900888136

R900888105 R961006032 R961006067 R961006102 R900888113 R961006137 R900888137

R900888106 R961006033 R961006068 R961006103 R900888114 R961006138 R900888138

R900888107 R961006034 R961006069 R961006104 R900888115 R961006139 R900888139

密封套件 仅用于接近开关

R961006022 R961006243

R961006022 R961006243

R961006057 R961006278

R961006057 R961006278

R961006092 R961006313

R961006127 R961006348

R961006127 R961006348

R961006162 R961006383

R961006162 R961006383

R961006189 R961006410

仅用于位置测量系统

R900885935 R900885937

R900894958 R900894979

R900894959 R900894980

R900894960 R900894981

R900894961 R900894982

R900894962 R900894983

R900894963 R900894985

R900894964 R900894986

R900894973 R900894987

R900894974 R900894988

R900894975 R900894989

R900894976 R900894991

R900894977 R900894993

R900894978 R900894994

R901010141 R961006001 R961006036 R961006071 R901010145 R901010147 R901010143 R961006106 R901010146

R900851087 R961006002 R961006037 R961006072 R900859445 R900859770 R900858841 R961006107 R900861001

R900860274 R961006004 R961006039 R961006074 R900860929 R900860939 R900860275 R961006109 R900861003

R900849392 R961006005 R961006040 R961006075 R900851515 R900860940 R900860277 R961006110 R900861004

R900859509 R961006007 R961006042 R961006077 R900851637 R900860941 R900860279 R961006112 R900861006

R900847956 R961006008 R961006043 R961006078 R900851638 R900859678 R900847855 R961006113 R900861007

R900857129 R961006010 R961006045 R961006080 R900856092 R900860943 R900860281 R961006115 R900861009

R900850905 R961006011 R961006046 R961006081 R900854718 R900851205 R900856180 R961006116 R900861010

R900860283 R961006013 R961006048 R961006083 R900856093 R900860945 R900860284 R961006118 R900861012

R900853382 R961006014 R961006049 R961006084 R900856094 R900860946 R900860285 R961006119 R900861013

R900860287 R961006016 R961006051 R961006086 R900860931 R900860950 R900860288 R961006121 R900861015

R900857949 R961006017 R961006052 R961006087 R900856095 R900855464 R900856102 R961006122 R900861016

R900858281 R961006018 R961006053 R961006088 R900860932 R900860951 R900860289 R961006123 R900861017

R900853965 R961006019 R961006054 R961006089 R900856096 R900860952 R900860290 R961006124 R900849080

R900855683 R961006020 R961006055 R961006090 R900860468 R900860953 R900860291 R961006125 R900861018

R900851146 R961006021 R961006056 R961006091 R900860933 R900860954 R900857536 R961006126 R900861019

R900856497 R961006023 R961006058 R961006093 R900860934 R900860955 R900852561 R961006128 R900861020

R900848603 R961006024 R961006059 R961006094 R900860935 R900860956 R900860292 R961006129 R900861021

R900860294 R961006025 R961006060 R961006095 R900860936 R900860957 R900860295 R961006130 R900861022

R900856431 R961006026 R961006061 R961006096 R900860937 R900860958 R900860293 R961006131 R900861023

R900888100 R961006027 R961006062 R961006097 R900888116 R900888140 R900888108 R961006132 R900888132

R900888101 R961006028 R961006063 R961006098 R900888117 R900888141 R900888109 R961006133 R900888133

R900888102 R961006029 R961006064 R961006099 R900888118 R900888142 R900888110 R961006134 R900888134

R900888103 R961006030 R961006065 R961006100 R900888119 R900888143 R900888111 R961006135 R900888135

R900888104 R961006031 R961006066 R961006101 R900888120 R900888144 R900888112 R961006136 R900888136

R900888105 R961006032 R961006067 R961006102 R900888121 R900888145 R900888113 R961006137 R900888137

R900888106 R961006033 R961006068 R961006103 R900888122 R900888146 R900888114 R961006138 R900888138

R900888107 R961006034 R961006069 R961006104 R900888123 R900888147 R900888115 R961006139 R900888139

R901010159 R961006222 R961006257 R961006292 R901010162 R901010170 R901010161 R961006327 R901010169

R900867252 R961006223 R961006258 R961006293 R900866747 R900867133 R900868889 R961006328 R900868943

R900867254 R961006225 R961006260 R961006295 R900866749 R900857135 R900868891 R961006330 R900868945

R900864930 R961006226 R961006261 R961006296 R900866750 R900867136 R900868892 R961006331 R900868946

R900867261 R961006228 R961006263 R961006298 R900866752 R900867138 R900868894 R961006333 R900868948

R900867262 R961006229 R961006264 R961006299 R900866753 R900867139 R900868895 R961006334 R900868949

R900867264 R961006231 R961006266 R961006301 R900866755 R900867141 R900868897 R961006336 R900868951

R900867265 R961006232 R961006267 R961006302 R900866756 R900867142 R900868898 R961006337 R900868952

R900867267 R961006234 R961006269 R961006304 R900866758 R900867144 R900868900 R961006339 R900868954

R900867268 R961006235 R961006270 R961006305 R900866759 R900867146 R900868901 R961006340 R900868955

R900860730 R961006237 R961006272 R961006307 R900866761 R900867148 R900868903 R961006342 R900868956

R900867270 R961006238 R961006273 R961006308 R900866762 R900867149 R900868904 R961006343 R900868957

R900867271 R961006239 R961006274 R961006309 R900866763 R900867150 R900868905 R961006344 R900868958

R900867272 R961006240 R961006275 R961006310 R900866764 R900867151 R900868906 R961006345 R900868959

R900867273 R961006241 R961006276 R961006311 R900866765 R900867152 R900868907 R961006346 R900868960

R900867274 R961006242 R961006277 R961006312 R900866766 R900867153 R900868908 R961006347 R900868961

R900867275 R961006244 R961006279 R961006314 R900866767 R900867154 R900868909 R961006349 R900868962

R900867276 R961006245 R961006280 R961006315 R900866768 R900867155 R900868910 R961006350 R900868963

R900867277 R961006246 R961006281 R961006316 R900866769 R900867156 R900868911 R961006351 R900868964

R900867278 R961006247 R961006282 R961006317 R900866770 R900867157 R900868912 R961006352 R900868965

R900888020 R961006248 R961006283 R961006318 R900888036 R900888060 R900888028 R961006353 R900888052

R900888021 R961006249 R961006284 R961006319 R900888037 R900888061 R900888029 R961006354 R900888053

R900888022 R961006250 R961006285 R961006320 R900888038 R900888062 R900888030 R961006355 R900888054

R900888023 R961006251 R961006286 R961006321 R900888039 R900888063 R900888031 R961006356 R900888055

R900888024 R961006252 R961006287 R961006322 R900888040 R900888064 R900888032 R961006357 R900888056

R900888025 R961006253 R961006288 R961006323 R900888041 R900888065 R900888033 R961006358 R900888057

R900888026 R961006254 R961006289 R961006324 R900888042 R900888066 R900888034 R961006359 R900888058

R900888027 R961006255 R961006290 R961006325 R900888043 R900888067 R900888035 R961006360 R900888059

R901010148 R961006141 R961006168 R901010149 R961006195 R901010150

R900861025 R961006142 R961006169 R900861050 R961006196 R900861100

R900861027 R961006144 R961006171 R900861052 R961006198 R900861102

R900861028 R961006145 R961006172 R900861053 R961006199 R900861103

R900861030 R961006147 R961006174 R900861055 R961006201 R900861105

R900861031 R961006148 R961006175 R900861056 R961006202 R900861106

R900861033 R961006150 R961006177 R900861058 R961006204 R900861108

R900861034 R961006151 R961006178 R900861059 R961006205 R900861109

R900861036 R961006153 R961006180 R900861061 R961006207 R900861114

R900861037 R961006154 R961006181 R900861062 R961006208 R900861115

R900861039 R961006156 R961006183 R900861064 R961006210 R900861120

R900861040 R961006157 R961006184 R900861065 R961006211 R900861122

R900861041 R961006158 R961006185 R900861066 R961006212 R900861124

R900861042 R961006159 R961006186 R900861067 R961006213 R900861126

R900861043 R961006160 R961006187 R900861068 R961006214 R900861128

R900861044 R961006161 R961006188 R900861069 R961006215 R900861130

R900861045 R961006163 R961006190 R900861070 R961006217 R900861133

R900861046 R961006164 R961006191 R900861071 R961006218 R900861135

R900861047 R961006165 R961006192 R900861072 R961006219 R900861142

R900861048 R961006166 R961006193 R900861073 R961006220 R900861143

R901010151 R961006362 R961006389 R901010154 R961006416 R901010156

R900868999 R961006363 R961006390 R900869026 R961006417 R900869093

R900869001 R961006365 R961006392 R900869028 R961006419 R900869095

R900869002 R961006366 R961006393 R900869029 R961006420 R900869096

R900869004 R961006368 R961006395 R900869031 R961006422 R900869098

R900869005 R961006369 R961006396 R900869032 R961006423 R900869099

R900869007 R961006371 R961006398 R900869034 R961006425 R900869101

R900869008 R961006372 R961006399 R900869035 R961006426 R900869102

R900869012 R961006374 R961006401 R900869037 R961006428 R900869104

R900869013 R961006375 R961006402 R900869038 R961006429 R900869105

R900869015 R961006377 R961006404 R900869040 R961006431 R900869107

R900869016 R961006378 R961006405 R900869041 R961006432 R900869108

R900869017 R961006379 R961006406 R900869042 R961006433 R900869109

R900869018 R961006380 R961006407 R900869043 R961006434 R900869110

R900869019 R961006381 R961006408 R900869044 R961006435 R900869111

R900869020 R961006382 R961006409 R900869045 R961006436 R900869112

R900869021 R961006384 R961006411 R900869046 R961006438 R900869113

R900869022 R961006385 R961006412 R900869047 R961006439 R900869114

R900869023 R961006386 R961006413 R900869048 R961006440 R900869115

R900869024 R961006387 R961006414 R900869049 R961006441 R900869116

R900861025 R900861050 R961006142 R961006072 R961006196 R900861100 R961006169

R900861027 R900861052 R961006144 R961006074 R961006198 R900861102 R961006171

R900861028 R900861053 R961006145 R961006075 R961006199 R900861103 R961006172

R900861030 R900861055 R961006147 R961006077 R961006201 R900861105 R961006174

R900861031 R900861056 R961006148 R961006078 R961006202 R900861106 R961006175

R900861033 R900861058 R961006150 R961006080 R961006204 R900861108 R961006177

R900861034 R900861059 R961006151 R961006081 R961006205 R900861109 R961006178

R900861036 R900861061 R961006153 R961006083 R961006207 R900861114 R961006180

R900861037 R900861062 R961006154 R961006084 R961006208 R900861115 R961006181

R900861039 R900861064 R961006156 R961006086 R961006210 R900861120 R961006183

R900861040 R900861065 R961006157 R961006087 R961006211 R900861122 R961006184

R900861041 R900861066 R961006158 R961006088 R961006212 R900861124 R961006185

R900861042 R900861067 R961006159 R961006089 R961006213 R900861126 R961006186

R900861043 R900861068 R961006160 R961006090 R961006214 R900861128 R961006187

R900861044 R900861069 R961006161 R961006091 R961006215 R900861130 R961006188

R900861045 R900861070 R961006163 R961006093 R961006217 R900861133 R961006190

R900861046 R900861071 R961006164 R961006094 R961006218 R900861135 R961006191

R900861047 R900861072 R961006165 R961006095 R961006219 R900861142 R961006192

R900861048 R900861073 R961006166 R961006096 R961006220 R900861143 R961006193

R900888100 R900888108 R961006027 R961006097 R961006132 R900888116 R961006062

R900888101 R900888109 R961006028 R961006098 R961006133 R900888117 R961006063

R900888102 R900888110 R961006029 R961006099 R961006134 R900888118 R961006064

R900888103 R900888111 R961006030 R961006100 R961006135 R900888119 R961006065

R900888104 R900888112 R961006031 R961006101 R961006136 R900888120 R961006066

R900888105 R900888113 R961006032 R961006102 R961006137 R900888121 R961006067

R900888106 R900888114 R961006033 R961006103 R961006138 R900888122 R961006068

R900888107 R900888115 R961006034 R961006104 R961006139 R900888123 R961006069

R900885938 R900885939

R900894997 R900894998

R961006022 R961006243

R961006022 R961006243

R961006057 R961006278

R961006057 R961006278

R961006092 R961006313

R961006092 R961006313

R961006127 R961006348

R961006127 R961006348

R961006162 R961006383

R961006162 R961006383

R900885935 R900885937

R900894958 R900894979

R900894959 R900894980

R900894960 R900894981

R900894961 R900894982

R900894962 R900894983

R900894963 R900894985

R900894964 R900894986

R900894973 R900894987

R900894974 R900894988

R900894975 R900894989

R900894976 R900894991

R900894977 R900894993

R900894978 R900894994


反对 0
举报 0
收藏 0
评论 0
联系方式
