价格：￥0.00/件
品牌：哈威
3：543
235：35
52：3
发货：3天内

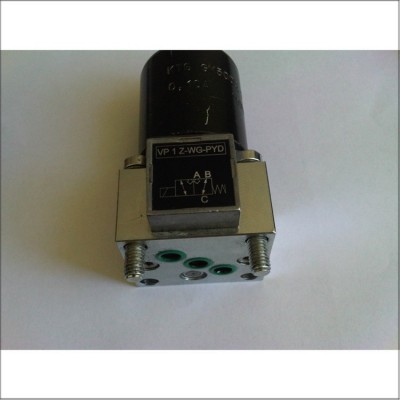

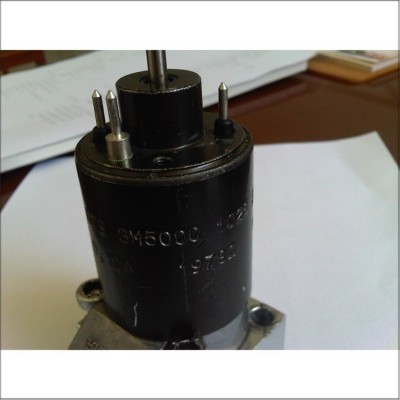

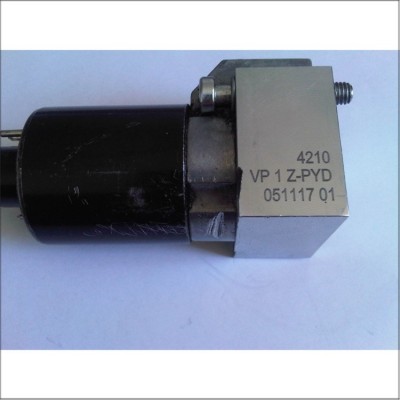

厦门供应 全新原装\哈威\VP1Z-WG 230-PYD
VP 型截止式换向阀
产品描述
截止式换向阀属于换向阀类。 作为锥形阀，它在闭合状态时是无泄漏密封的。
VP型截止式换向阀是板式安装阀。 带有不同操纵方式的2/2-、3/2-和4/2-截止式换向阀可供选择。 所有接口均同等耐压。
VP型截止式换向阀特别适于高粘度介质（例如润滑脂）。 适合的连接块可实现直接的管接。
特征及优点：
任意流动方向
在操纵元件和介质之间没有相互作用
温度上升造成的树脂化或粘结在这里不会出现。
适用于高粘度介质（例如润滑脂）
防爆设计
使用范围：
润滑装置
矿山机械
建筑机械和建材机械
搬运和装配技术
元件种类： 截止式换向阀，无泄漏密封
结构形式： 板式安装单只阀
操纵方式： 电磁操纵
液压
气动
pmax： 400 bar
Qmax： 15 l/min
VP1 - R - 3/4 - G24
操纵方式 电磁操纵
机械操纵： 滚轮，销轴
手动操纵： 销杆，旋钮
可选连接块 用于直接管接
机能 2/2 截止式换向阀 (R, S)
3/2 截止式换向阀 (Z)
4/2 截止式换向阀 (W, G)
基型，规格 VP 型，规格 1
符合 ATEX 的结构形式
