价格：￥62.00/K
品牌：JST,MOLEX,JAM,AMP/TE,KET,YEONHO
读卡类型：RS-MMC
接口类型：HDMI
起订：1K
供应：1000000K
发送询价
| 读卡类型 | RS-MMC |
| 接口类型 | HDMI |
| 类型 | 其他IC |
| 特性 | 防潮 |
| 芯数 | 4 |
| 形状 | 条形 |
| 应用范围 | LED |
| 针数 | 4 |
| 制作工艺 | 冷压 |
| 种类 | 胶壳(housing) |
| 绝缘体材质 | 尼龙 |
| 接触件材质 | CU |
| 支持卡数 | 四合一 |
| 品牌 | 鼎腾发 |
| 型号 | XHP-4 |

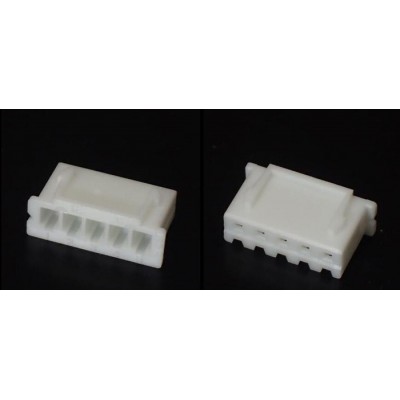

优势出售JST原厂胶壳XHP-4，现货库存多，单价优惠，交货快，周期短，欢迎来电来函咨询洽谈！
| XHコネクタ |
| 製品情報 | | シリーズ | XH | | カテゴリ | 基板対電線接続圧着コネクタ | | タイプ | 嵌合
圧着ボックス |
| | 一般仕様 | | ピッチ | 2.5 mm | | 定格電流 | 3A (AWG#22使用時) | | 定格電圧 | 250V | | 実装方向 | トップ?サイド |
| | 製品説明 | NHシリーズの高信頼性と汎用性を基本にしてより小型に開発された基板用コネクタで、その実装高さは9.8ｍｍとなっています。
|
| | |
 | |
| XH connector |
| | This connector was developed based on the high reliability and versatility of our NH series connectors. The connector is very small with mounting height of 9.8mm.
| | Product Profile | | Series | XH connector | | Category | Wire to Board Crimp style Connectors | | Type | Disconnectable type
Crimp style, Shrouded header type |
| | Specification | | Pitch | 2.5 mm | | Current rating | 3A (AWG#22) | | Voltage rating | 250V | PC board
mounting direction | Top entry, Side entry |
Compliant with RoHS.
(LF)(SN) as identification part number shall be displayed on a label.
When ordering RoHS compliant products, please inquire to the nearest
JST Sales Office, or order them with the described part number adding
(LF)(SN) as the identification marking after it.
| |
