德国施耐德电气 Lexium BRS368H130AAA 步进电机|伺服电机图1

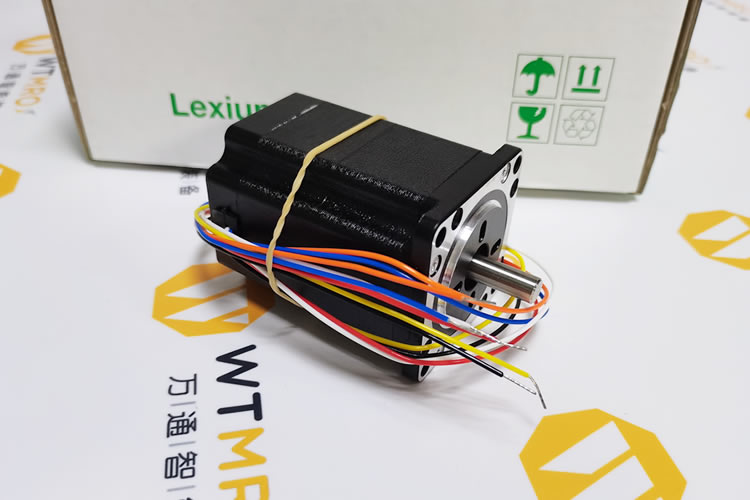

德国施耐德电气 Lexium BRS368H130AAA 步进电机|伺服电机

2023-02-23 17:595100询价

价格:¥0.00/件

品牌:Schneider Electric

标签: 施耐德电气 BRS368H130AAA 步进电机 伺服电机 Lexium

发货:3天内

发送询价

主要参数:

Range compatibility:Lexium SD3

Product or component type:Motion control motor

Device short name:BRS3

Maximum mechanical speed:3000 rpm

Motor type:3-phase stepper motor

Number of motor poles:6

Supply voltage limits:34 V DC / 48 V DC

Mounting support:Flange

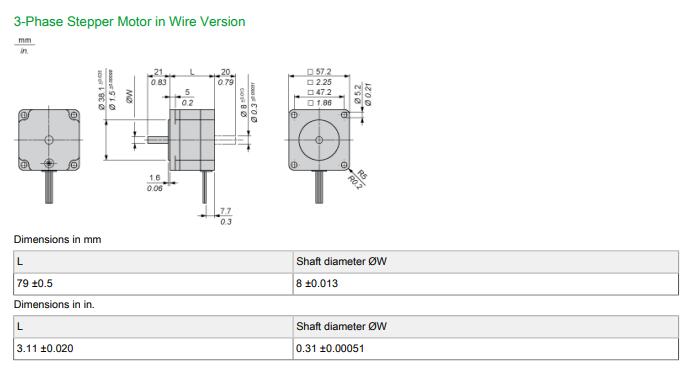

Motor flange size:2.25 in (57.2 mm)

Length:3.11 in (79 mm)

Centring collar diameter:1.50 in (38 mm)
