价格:¥0.78/pcs
品牌:天睦
额定电流:1.5
额定电压:125
起订:100000pcs
供应:100000pcs
额定电流 | 1.5 |
---|---|
额定电压 | 125 |
环境温度 | 30-70℃ |
适用范围 | 网络连接 |
壳体材质 | 塑料 |
品牌 | 天睦 |

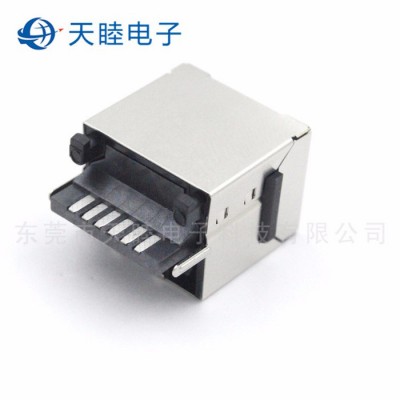

型号 | 8P8C 镀金3U 斜45度 |
加工定制 | 是 |
孔位数 | 8个 |
质量认证 | ISO9001 |
额定电流 | 1.0(A) | 额定电压 | 125(V) |
环境温度 | -40~80(℃) | 壳体材质 | PBT |
导电体材质 | CU | 产品认证 | UL |
MATERIAL 1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON2. HOUSING COLOR : BLACK OR OTHERS3. ConTACT MATERIAL : PHOSPHOR BRonZE φ0.46mm4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATINGTHICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u" SPECIFICATIONS ELECTRICAL1. VOLTAGE RATING: 125 VAC RMS.2. CURRENT RATING: 1.0 AMP3. ConTACT RESISTANCE: 30 MILLIOHMS MAX.4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTEMECHANICAL1. DURABILITY : 750 CYCLES MIN2. PCB RETENTION PRE-SOLDER: 1 LB MINENVIRONMENTAL1. STORAGE :-40℃~80℃2. OPERATION: 0℃~70℃
