价格：￥240.00/个
品牌：昌誉
附件类型：楔形锁
应用于：汽车连接器
起订：10000个
供应：10000个
| 附件类型 | 楔形锁 |
|---|---|
| 应用于 | 汽车连接器 |
| 系列 | DT |
| 类型 | TPA（端子位置保证） |
| 材料 | PBT GF |
| 描述 | WEDGE LOCK |
| 产地 | 中国 |
| 接口类型 | AC/DC |
| 售后服务 | 全国联保 |
| 形状 | 不规则 |
| 应用范围 | 汽车 |
| 制造商 | 泰科TE |
| 制作工艺 | 注塑 |
| 执行质量标准 | 国标 |
| 发货期限 | 3天 |
| 经营模式 | 经销批发 |
| 品牌 | 德驰 |

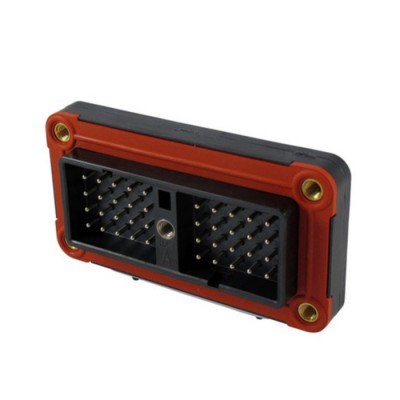

| 型号 | DRC13-24PA |
| Contact Part Number | Size& Type | Wire Gauge Range | Recommended Strip Length | Hand Crimp Tool | Production Crimp Tool |
| 0460-202-20141 | 20 Pin | 20 & 24 AWG (0.5 - 0.2mm2 ) | 0.150-2.00 (3.81-5.08mm) | HDT-48-00 | HDP-400 |
| 0462-201-20141 | 20 Socket | 20 & 24 AWG (0.5 - 0.2mm2 ) | 0.150-2.00 (3.81-5.08mm) | HDT-48-00 | HDP-400 |
| 0460-202-16141 | 16 Pin | 16, 18 & 20 AWG (1.0 - 0.5mm2 ) | 0.150-2.00 (3.81-5.08mm) | HDT-48-00 | HDP-400 |
| 0462-201-16141 | 16 Socket | 16, 18 & 20 AWG (1.0 - 0.5mm2 ) | 0.150-2.00 (3.81-5.08mm) | HDT-48-00 | HDP-400 |
| 0460-215-16141 | 16 Pin | 14 & 16 AWG (2.0 - 1.0mm2 ) | 0.150-2.00 (3.81-5.08mm) | HDT-48-00 | HDP-400 |
| 0462-209-16141 | 16 Socket | 14 & 16 AWG (2.0 - 1.0mm2 ) | 0.150-2.00 (3.81-5.08mm) | HDT-48-00 | HDP-400 |
| 0460-204-12141 | 12 Pin | 16 & 18 AWG (0.75-1.5mm2 ) | 0.150-2.00 (3.81-5.08mm) | HDT-48-00 | HDP-400 |
| 0462-203-12141 | 12 Socket | 12 & 14 AWG (3.0 - 2.0mm2 ) | 0.150-2.00 (3.81-5.08mm) | HDT-48-00 | HDP-400 |
| 0460-204-08141 | 8 Pin | 8 & 10 AWG (8.0 - 5.0mm2 ) | 0.150-2.00 (3.81-5.08mm) | HDT-48-00 | HDP-400 |
| 0462-203-08141 | 8 Socket | 8 & 10 AWG (8.0 - 5.0mm2 ) | 0.150-2.00 (3.81-5.08mm) | HDT-48-00 | HDP-400 |
| 0460-204-0490 | 4 Pin | 6 AWG (13.0mm2 ) | 0.225-.275 (5.72-6.99mm) | HDT-48-00 | HDP-400 |
| 0462-203-04141 | 4 Socket | 6 AWG (13.0mm2 ) | 0.225-.275 (5.72-6.99mm) | HDT-48-00 | HDP-400 |
| Contact Part Number | Size& Type | Wire Gauge Range | Insulation O.D. | Recommended Strip Length | Hand Crimp Tool | Production Crimp Tool |
| 1060-20-0122 | 20 Pin | 16, 18 & 20 AWG (1.0-0.5mm2 ) | 0.075-0.125 (1.90-3.15mm) | 0.150-2.00 (3.81-5.08mm) | DTT-20-00 | DCT20-02-00 |
| 1062-20-0122 | 20 Socket | 16, 18 & 20 AWG (1.0-0.5mm2 ) | 0.075-0.125 (1.90-3.15mm) | 0.150-2.00 (3.81-5.08mm) | DTT-20-00 | DCT20-02-00 |
| 1060-20-0222 | 20 Pin | 16, 18 & 20 AWG (1.0-0.5mm2 ) | 0.050-0.085 (1.3-2.15mm) | 0.150-2.00 (3.81-5.08mm) | DTT-20-00 | DCT20-02-00 |
| 1062-20-0222 | 20 Socket | 16, 18 & 20 AWG (1.0-0.5mm2 ) | 0.050-0.085 (1.3-2.15mm) | 0.150-2.00 (3.81-5.08mm) | DTT-20-00 | DCT20-02-00 |
| 1060-16-0622 | 16 Pin | 16, 18 & 20 AWG (0.50-1.0mm2 ) | 0.055-.083 (1.40-2.10mm) | 0.150-2.00 (3.81-5.08mm) | DTT-16-00 | DCT16-02-00 |
| 1062-16-0622 | 16 Socket | 16, 18 & 20 AWG (0.50-1.0mm2 ) | 0.055-.083 (1.40-2.10mm) | 0.150-2.00 (3.81-5.08mm) | DTT-16-00 | DCT16-02-00 |
| 1060-16-0122 | 16 Pin | 16 & 18 AWG (0.75-1.5mm2 ) | 0.075-0.115 (1.90-2.92mm) | 0.150-2.00 (3.81-5.08mm) | DTT-16-00 | DCT16-02-00 |
| 1062-16-0122 | 16 Socket | 16 & 18 AWG (0.75-1.5mm2 ) | 0.075-0.115 (1.90-2.92mm) | 0.150-2.00 (3.81-5.08mm) | DTT-16-00 | DCT16-02-00 |
| 1060-14-0122 | 16 Pin | 14 & 16 AWG (2.0-1.0mm2 ) | 0.095-0.150 (2.41-3.81mm) | 0.150-2.00 (3.81-5.08mm) | DTT-16-00 | DCT16-02-00 |
| 1062-14-0122 | 16 Socket | 14 & 16 AWG (2.0-1.0mm2 ) | 0.095-0.150 (2.41-3.81mm) | 0.150-2.00 (3.81-5.08mm) | DTT-16-00 | DCT16-02-00 |
| 1060-12-0166 | 12 Pin | 12 & 14 AWG (4.0-2.0mm2 ) | 0.113-0.170 (2.87-4.32mm) | 0.225-.275 (5.72-6.99mm) | DTT-12-00 | DCT12-02-00 |
| 1062-12-0166 | 12 Socket | 12 & 14 AWG (4.0-2.0mm2 ) | 0.113-0.170 (2.87-4.32mm) | 0.225-.275 (5.72-6.99mm) | DTT-12-00 | DCT12-02-00 |
| 带端盖 | |||||
| 标准座 | 灰色标准 | 灰色薄壁 | 黑色标准 | 黑色薄壁 | 楔形绿色 |
| DT04-2P | DT04-2P-EP04 | DT04-2P-CE01 | DT04-2P-E005 | DT04-2P-CE03 | W2P |
| DT04-3P | DT04-3P-EP04 | DT04-3P-CE01 | DT04-3P-E005 | DT04-3P-CE03 | W3P |
| DT04-4P | DT04-4P-EP04 | DT04-4P-CE01 | DT04-4P-E005 | DT04-4P-CE03 | W4P |
| DT04-6P | DT04-6P-EP04 | DT04-6P-CE01 | DT04-6P-E005 | DT04-6P-CE03 | W6P |
| DT04-8PA | DT04-8PA-EP04 | DT04-8PA-CE01 | DT04-8PA-E005 | DT04-8PA-CE03 | W8P |
| DT04-12PA | DT04-12PA-EP04 | DT04-12PA-CE01 | DT04-12PA-E005 | DT04-12PA-CE03 | W12P |
| 标准 | |||||
| 标准座 | 灰色标准 | 灰色薄壁 | 黑色标准 | 黑色薄壁 | 楔形绿色 |
| DT04-2P | DT04-2P-P004 | DT04-2P-C015 | DT04-2P-E004 | DT04-2P-CE02 | W2P |
| DT04-3P | DT04-3P-P004 | DT04-3P-C015 | DT04-3P-E004 | DT04-3P-CE02 | W3P |
| DT04-4P | DT04-4P-P004 | DT04-4P-C015 | DT04-4P-E004 | DT04-4P-CE02 | W4P |
| DT04-6P | DT04-6P-P004 | DT04-6P-C015 | DT04-6P-E004 | DT04-6P-CE02 | W6P |
| DT04-8PA | DT04-8PA-P004 | DT04-8PA-C015 | DT04-8PA-E004 | DT04-8PA-CE02 | W8P |
| DT04-12PA | DT04-12PA-P004 | DT04-12PA-C015 | DT04-12PA-E004 | DT04-12PA-CE02 | W12P |
| 孔位 | 标准料号 | 灰色标准 | 灰色薄壁 | 黑色标准 | 黑色薄壁 | 锁片 |
| 3 | DT04-3P | DT04-3P-L012 | DT04-3P-CL03 | DT04-3P-LE14 | DT04-3P-CL06 | W3P |
| 4 | DT04-4P | DT04-4P-L012 | DT04-4P-CL03 | DT04-4P-LE14 | DT04-4P-CL06 | W4P |
| 6* | DT04-6P | DT04-6P-L012 | DT04-6P-CL03 | DT04-6P-LE14 | DT04-6P-CL06 | W6P |
| 8 | DT04-8PA | DT04-8PA-L012 | DT04-8PA-CL03 | DT04-8PA-LE14 | DT04-8PA-CL06 | W8P |
| 12 | DT04-12PA | DT04-12PA-L012 | DT04-12PA-CL03 | DT04-12PA-LE14 | DT04-12PA-CL06 | W12P |
| 孔数 | 次级锁 | 次级锁 | ||
| 2 | DTM06-2S | WM-2S | DTM04-2P | WM-2P |
| 3 | DTM06-3S | WM-3S | DTM04-3P | WM-3P |
| 4 | DTM06-4S | WM-4S | DTM04-4P | WM-4P |
| 6 | DTM06-6S | WM-6S | DTM04-6P | WM-6P |
| 8 | DTM06-08SA | WM-8S | DTM04-8PA | WM-8P |
| 8 | DTM06-08SB | WM-8S | DTM04-8PB | WM-8P |
| 8 | DTM06-08SC | WM-8S | DTM04-8PC | WM-8P |
| 8 | DTM06-08SD | WM-8S | DTM04-8PD | WM-8P |
| 12 | DTM06-12SA | WM-12S | DTM04-12PA | WM-12P |
| 12 | DTM06-12SB | WM-12S | DTM04-12PB | WM-12P |
| 12 | DTM06-12SC | WM-12S | DTM04-12PC | WM-12P |
| 12 | DTM06-12SD | WM-12S | DTM04-12PD | WM-12P |
| 孔数 | 插头 | 次级锁 | 插座 | 次级锁 |
| 2 | DTP06-2S | WP-2S | DTP04-2P | WP-2P |
| 4 | DTP06-4S | WP-4S | DTP04-4P | WP-4P |
| 2 | DTP06-2S-C015 | WP-2S | DTP04-2P-C015 | WP-2P |
| 4 | DTP06-4S-C015 | WP-4S | DTP04-4P-C015 | WP-4P |
| 带端盖 | ||||||
| 标准插头 | 灰色标准 | 灰色薄壁 | 标准橙色 | 黑色标准 | 黑色薄壁 | 楔形绿色 |
| DT06-2S | DT06-2S-EP04 | DT06-2S-CE01 | W2S | DT06-2S-EP06 | DT06-2S-CE05 | W2S-P012 |
| DT06-3S | DT06-3S-EP04 | DT06-3S-CE01 | W3S | DT06-3S-EP06 | DT06-3S-CE05 | W3S-P012 |
| DT06-4S | DT06-4S-EP04 | DT06-4S-CE01 | W4S | DT06-4S-EP06 | DT06-4S-CE05 | W4S-P012 |
| DT06-6S | DT06-6S-EP04 | DT06-6S-CE01 | W6S | DT06-6S-EP06 | DT06-6S-CE05 | W6S-P012 |
| DT06-8SA | DT06-8SA-EP04 | DT06-8SA-CE01 | W8S | DT06-8SA-EP08 | DT06-8SA-CE11 | W8S-P012 |
| DT06-12SA | DT06-12SA-EP04 | DT06-12SA-CE01 | W12S | DT06-12SA-EP08 | DT06-12SA-CE11 | W12S-P012 |
| 标准 | ||||||
| 标准插头 | 灰色标准 | 灰色薄壁 | 标准橙色 | 黑色标准 | 黑色薄壁 | 楔形绿色 |
| DT06-2S | DT06-2S-P004 | DT06-2S-C015 | W2S | DT06-2S-P012 | DT06-2S-CE06 | W2S-P012 |
| DT06-3S | DT06-3S-P004 | DT06-3S-C015 | W3S | DT06-3S-P012 | DT06-3S-CE06 | W3S-P012 |
| DT06-4S | DT06-4S-P004 | DT06-4S-C015 | W4S | DT06-4S-P012 | DT06-4S-CE06 | W4S-P012 |
| DT06-6S | DT06-6S-P004 | DT06-6S-C015 | W6S | DT06-6S-P012 | DT06-6S-CE06 | W6S-P012 |
| DT06-8SA | DT06-8SA-P004 | DT06-8SA-C015 | W8S | DT06-8SA-EP07 | DT06-8SA-CE10 | W8S-P012 |
| DT06-12SA | DT06-12SA-P004 | DT06-12SA-C015 | W12S | DT06-12SA-EP07 | DT06-12SA-CE10 | W12S-P012 |
