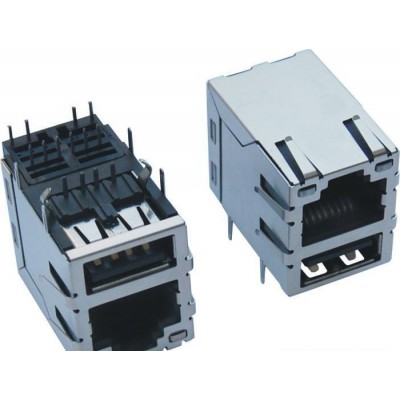

供应兴伸展电子100BASE以太网RJ45+USB3.0插座/以太网插座/RJ45连接器网络插座/网络接口母座图1

供应兴伸展电子100BASE以太网RJ45+USB3.0插座/以太网插座/RJ45连接器网络插座/网络接口母座

2021-11-22 15:288710询价

价格:¥4.30/个

产品认证:UL

额定电流:1.5(A)

起订:5000个

供应:10014个

发送询价
产品认证 UL
额定电流 1.5(A)
额定电压 125(V)
环境温度 -40℃~85℃(℃)
壳体材质 CU
导电体材质 CU
品牌 兴伸展电子
型号 100base
加工定制

MATERIAL



1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、NYLON
2. HOUSING COLOR : BLACK OR OTHERS
3. ConTACT MATERIAL : PHOSPHOR BRONZEφ0.46mm&t=0.35mm
4. PLATING: ConTACT AREA-SELECTING GOLD  TAILS-150u" TIN-LEAD MIN OVER 50u" NICKEL

5.SHIELD:0.23 THICKNESS BRASS WITH NICKEL PLATED

6. LED: OPTION





   SPECIFICATIONS



ELECTRICAL
1. INDUCTANCE AT 100mVDC BIAS: 350μ H MAX.
2. C W/W(pF MAX):28 pF
3. LEAKAGE INDUCTANCE AT 100KHz DC 100mV:0.3μ H MAX.
4. INSULATION LOSS: 1.0dB MAX @1-80 MHz 1.2dB MAX @ 100 MHz

5. RETURN LOSS: 14dB MIN @ 1-60 MHz 10dB MIN @ 60-100 MHz

6. CROSS TALK: 35 dB MIN @ 1-80 Mhz
MECHANICAL
1. MATING FORCE: 2.27 Kgf MAX
2. DURABILITY: 750 CYCLES MIN

3. PCB RETENTION PRE-SOLDER:1LB MIN


ENVIRONMENTAL
1. STORAGE :-40℃~85℃
MATES WITH MODULAR PLUG ConFORMING TO FCC PART 68,SUBPART F.



FEATUER

1. RJ45 10/100 base-TX TRANSFORMER JACK WITH TRANSFORMER/IMPEDANCE RESISTOR/HIGH VOLTAGE CAPACITOR

2. SIZE SAME AS RJ45 MODULAR JACK TO SAVE PCB BOARD SPACE

3. REDUCE EMI RADIATION,IMPROVE EMI PERFORMANCE

4. DESIGNED FOR NETWORK INTERFACE CARD APPLICATION

5. DESIGNED TO MEET IEEE 802.3u REQUIREMENT

6. DESIGHED FOR 100 base TRANSMISSION OVER UTP-5 CABLE

7. OPERATION TEMPERATURE RANGE:0℃~70℃
