价格：￥1.70/PCS
品牌：JST,MOLEX,JAM,AMP/TE,KET,YEONHO
Pitch：2.5mm
读卡类型：CF
起订：1000PCS
供应：5500000PCS
发送询价
| Pitch | 2.5mm |
| 读卡类型 | CF |
| 工作频率 | 高频 |
| 接口类型 | PCI |
| 特性 | 阻火/阻燃 |
| 线长 | 0（mm） |
| 芯数 | 3 |
| 形状 | 矩形 |
| 应用范围 | PCB |
| 针数 | 3 |
| 制作工艺 | 熔接 |
| 种类 | WAFER |
| 绝缘体材质 | 尼龙 |
| 接触件材质 | 青铜 |
| 支持卡数 | 三合一 |
| 品牌 | 鼎腾发 |
| 型号 | B03B-XASK-1-A |
| 加工定制 | 否 |
JST针座B03B-XASK-1-A现样出售,有需要的可网上交易!

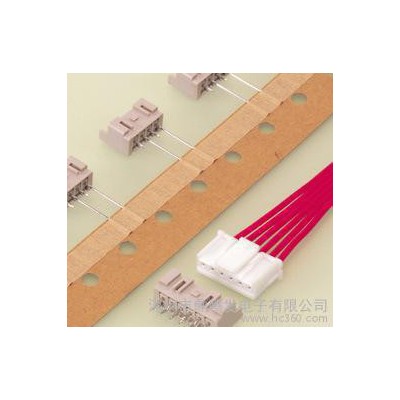

| XA connector (W to B) |
 | | *Secure locking device prevents accidental disconnection.
*Header wafer is made of solder crack preventive material, glass-filled PA66 nylon.
*Header pins are round and reflow-treated, which provides low insertion force.
*Shrouded headers on radial-tape are also available.
*Headers with polarizing bosses are also available.
| | Product Profile | | Series | XA connector (W to B) | | Category | Wire to Board Crimp style Connectors | | Type | Disconnectable type
Crimp style, With secure locking device | | Feature | With secure locking device | | | Specification | | Pitch | 2.5 mm | | Current rating | 3A (AWG#22,#20) | | Voltage rating | 250V | PC board
mounting direction | Top entry, Side entry |
Compliant with RoHS.
(LF)(SN) as identification part number shall be displayed on a label.
When ordering RoHS compliant products, please inquire to the nearest
JST Sales Office, or order them with the described part number adding
(LF)(SN) as the identification marking after it.
| |
