价格:¥7.30/个
环境温度:40℃~80℃(℃)
壳体材质:PBT
起订:2000个
供应:10017个
环境温度 | 40℃~80℃(℃) |
---|---|
壳体材质 | PBT |
导电体材质 | CU |
产品认证 | UL |
额定电压 | 125(V) |
额定电流 | 1.5(A) |
品牌 | 兴伸展电子 |

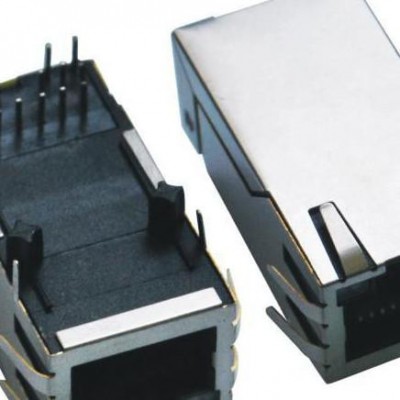

型号 | 10/100base |
加工定制 | 否 |
1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON
2. HOUSING COLOR : BLACK OR OTHERS
3. ConTACT MATERIAL : PHOSPHOR BRonZE 0.35mm
4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 3u"/6u"/15u"/30u"/50u"
5. SHIELD : 0.2 THICKNESS BRASS WITH NICKEL PLATED
6. LED : OPTION
ELECTRICAL
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING: 1.5 AMP
3. ConTACT RESISTANCE: 30 MILLIOHMS MAX.
4. INSULATION RESISTANCE : 500 MEGOHMS MIN@500 VDC
5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTE
MECHANICAL
1. DURABILITY : 750 CYCLES MIN
2. PCB RETENTION PRE-SOLDER: 1 LB MIN
ENVIRONMENTAL
1. STORAGE :-40℃~80℃
2. OPERATION: 0℃~70℃
