价格:¥3.50/个
材质:锌合金
产地:天津
起订:10个
供应:70000个
发货:7天内
材质 | 锌合金 |
---|---|
产地 | 天津 |
耐温 | -40℃到100℃ |
颜色 | 白锌色 |
阻燃性 | 强 |
执行质量标准 | 国标 |
品牌 | 易科 |
型号 | 齐全 |
加工定制 | 是 |
质量认证 | ce认证 |

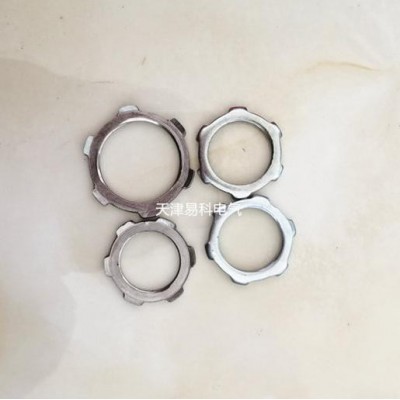

天津易科电气有限公司生产的不锈钢软管接头。材质304和316有保证,可以为客户提供材质检测报告,目前的不锈钢电缆密封软管接头已被应用到出口变压器上,大型空调。制冷设备,食品生产线上。天津易科电气有限公司易科品牌的不锈钢软管接头经过抛光处理,外观精美,无毛刺,让客户爱不释手,天津易科电气有限公司加工的不锈钢金属软管接头,所有金属部分都是保证不锈钢304/316材质,共由七部分组成,不锈钢体,不锈钢螺帽,不锈钢金属环,不锈钢锁母,蓝色衬环,蓝色衬套,黑色垫片,不锈钢接头与保护电线电缆的不锈钢软管配套,安装简便,把不锈钢接头的螺帽。
详细参数说明:
1、产品特性:特殊夹紧爪与加紧圈凹凸相扣设计,配合迫紧头,装配简单,夹紧电缆范围大,抗拉力强,防水防尘,耐腐蚀。 2、产品材质:接头主体黄铜镀镍材质,夹紧件为尼龙(PA)材质,密封件和O型圈采用丁晴橡胶(NBR)制成。
3、防护等级:IP68。工作温度:静态:-40℃到100℃,短时间达120℃。动态:-20℃到 80℃,短时间100℃。
4、 螺纹长度:短螺纹适合于薄型机板的开孔或有内螺纹的设备上;长螺纹适合厚型机板。也可定制加长型螺纹。
5、使用方法:电缆接头是电缆的配套产品,一端将电缆锁紧,另一端接入设备。
螺纹规格公制AG Specification of thread AG | 螺纹规格PG Specification of thread PG | 螺纹规格NPT Specification of thread AG | 螺纹规格G Specification of thread G | 适用电缆 Cable range | 螺纹长度GL Thread length | 接合长度H Joint length | 扳手经 Spanner diameter |
M12*1.5 | PG7 | NPT1/4 | G1/4 | 3-6.5 | 7mm | 19mm | 14mm |
M14*1.5 | 4-8 | 7mm | 19mm | 18mm | |||
M16*1.5 | PG9 | NPT3/8 | G3/8 | 4-8 | 8mm | 20mm | 18mm |
M18*1.5 | PG11 | 5-10 | 8mm | 21mm | 20mm | ||
M20*1.5 | PG13.5 | NPT1/2 | G1/2 | 6-12 | 8mm | 22mm | 22mm |
M22*1.5 | PG16 | 10-14 | 8mm | 23Mm | 24mm | ||
M24*1.5 | 10-14 | 9mm | 25mm | 24/27mm | |||
M25*1.5 | PG19 | 10-14 | 9mm | 25mm | 24/27mm | ||
M25*1.5 | NPT3/4 | G3/4 | 13-18 | 9mm | 27mm | 30mm | |
M27*1.5(2) | 13-18 | 9mm | 27mm | 30mm | |||
M28*1.5(2) | PG21 | 13-18 | 9mm | 27mm | 30mm | ||
M30*1.5(2) | 13-18 | 9mm | 29mm | 30/32mm | |||
M32*1.5(2) | PG25 | 15-22 | 10mm | 29mm | 35mm | ||
M33*1.5(2) | 15-22 | 10mm | 29mm | 35mm | |||
M36*1.5(2) | PG29 | NPT1 | 18-25 | 10mm | 31mm | 40mm | |
M37*1.5(2) | G1 | 18-25 | 10mm | 31mm | 40mm | ||
M40*1.5(2) | 18-25 | 11mm | 31mm | 40/45mm | |||
M40*1.5(2) | 22-30 | 11mm | 35mm | 45mm | |||
M42*1.5(2) | PG36 | NPT1-1/4 | 22-30 | 11mm | 35mm | 45mm | |
M47*1.5(2) | G1-1/4 | 25-33 | 11mm | 37mm | 50mm | ||
M48*1.5(2) | 25-33 | 11mm | 37mm | 50mm | |||
M50*1.5(2) | PG42 | NPT1-1/2 | 32-38 | 12mm | 37mm | 55/57mm | |
M54*1.5(2) | G1-1/2 | 32-38 | 12mm | 38mm | 57mm | ||
M56*1.5(2) | PG48 | NPT2 | 32-38 | 12mm | 38mm | 57/59mm | |
M60*1.5(2) | G2 | 37-44 | 13mm | 38mm | 65mm | ||
M63*1.5(2) | 37-44 | 13mm | 38mm | 65mm | |||
M64*1.5(2) | PG63 | NPT2-1/2 | 37-44 | 13mm | 38mm | 65/68mm | |
M72*2 | G2-1/2 | 42-52 | 15mm | 42mm | 77mm | ||
M75*2 | 42-52 | 15mm | 42mm | 77mm | |||
M80*2 | NPT3 | 55-62 | 15mm | 45mm | 90mm | ||
M88*2 | G3 | 65-70 | 15mm | 45mm | 94mm | ||
M100*2 | 78-84 | 15mm | 45mm | 110mm |
