价格:¥1.20/个
产品认证:UL
额定电流:0.5(A)
起订:2000个
供应:50019个
发送询价
产品认证 | UL |
---|---|
额定电流 | 0.5(A) |
额定电压 | 150(V) |
环境温度 | -40~80(℃) |
壳体材质 | PBT |
导电体材质 | 铜 |
品牌 | 兴伸展电子 |

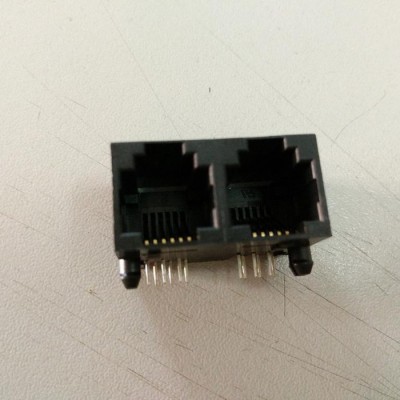

型号 | 6P |
加工定制 | 是 |
1.USING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON
2. HOUSING COLOR : BLACK OR OTHERS
3. ConTACT MATERIAL : PHOSPHOR BRonZE φ0.46mm
4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"
LECTRICAL
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING: 1.0AMP
3. ConTACT RESISTANCE: 30 MILLIOHMS MAX.
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC
5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTE
MECHANICAL
1. DURABILITY : 750 CYCLES MIN
2. PCB RETENTION PRE-SOLDER: 1 LB MIN
ENVIRONMENTAL
1. STORAGE :-40℃~80℃
2. OPERATION: 0℃~70℃
