价格：￥3.20/pcs
品牌：天睦
输出阻抗：500
基准温度：-20~75℃
起订：50000pcs
供应：50000pcs
| 输出阻抗 | 500 |
|---|---|
| 基准温度 | -20~75℃ |
| 品牌 | YL |
| 型号 | 10/100base RJ45 3U |
| 加工定制 | 是 |
| 额定电流 | 1.5（A） | 额定电压 | 125（V） |
| 环境温度 | -40℃~85℃（℃） | 壳体材质 | CU |
| 导电体材质 | CU | 产品认证 | UL |
MECHANICAL1. MATING FORCE: 2.27 Kgf MAX2. DURABILITY: 750 CYCLES MIN3. PCB RETENTION PRE-SOLDER:1LB MINENVIRONMENTAL1. STORAGE :-40℃~85℃1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、NYLON2. HOUSING COLOR : BLACK OR OTHERS3. ConTACT MATERIAL : PHOSPHOR BRONZEφ0.46mm&t=0.35mm4. PLATING: ConTACT AREA-SELECTING GOLD TAILS-150u" TIN-LEAD MIN OVER 50u" NICKEL5.SHIELD:0.23 THICKNESS BRASS WITH NICKEL PLATED6. LED: OPTION ELECTRICAL1. INDUCTANCE AT 100mVDC BIAS: 350μ H MAX. MATES WITH MODULAR PLUG ConFORMING TO FCC PART 68,SUBPART F.2. C W/W(pF MAX):28 pF3. LEAKAGE INDUCTANCE AT 100KHz DC 100mV:0.3μ H MAX.4. INSULATION LOSS: 1.0dB MAX @1-80 MHz 1.2dB MAX @ 100 MHz5. RETURN LOSS: 14dB MIN @ 1-60 MHz 10dB MIN @ 60-100 MHz6. CROSS TALK: 35 dB MIN @ 1-80 MhzFEATUER1. RJ45 10/100 base-TX TRANSFORMER JACK WITH TRANSFORMER/IMPEDANCE RESISTOR/HIGH VOLTAGE CAPACITOR2. SIZE SAME AS RJ45 MODULAR JACK TO SAVE PCB BOARD SPACE3. REDUCE EMI RADIATION,IMPROVE EMI PERFORMANCE4. DESIGNED FOR NETWORK INTERFACE CARD APPLICATION5. DESIGNED TO MEET IEEE 802.3u REQUIREMENT6. DESIGHED FOR 100 base TRANSMISSION OVER UTP-5 CABLE7. OPERATION TEMPERATURE RANGE:0℃~70℃

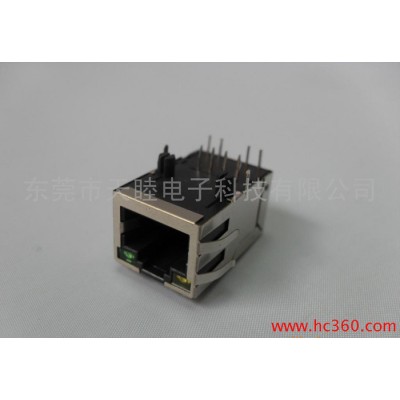

本公司供应YLRJ45滤波器带LED灯插座质量保证，欢迎咨询洽谈。
