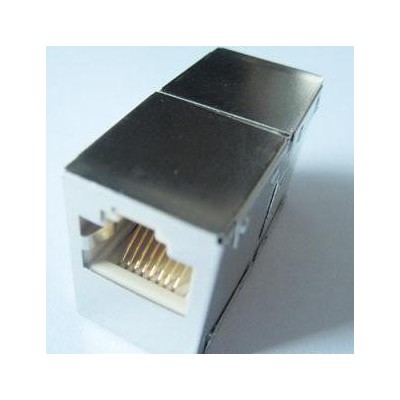

供应兴伸展电子8P8C带屏蔽壳网络连接器/8P8C RJ45连接器网络插座/网络接口母座

1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0ABS、
2. HOUSING COLOR : BLACK OR OTHERS
3. ConTACT MATERIAL : PHOSPHOR BRONZEφ0.46mm&t

4. PLATING: ConTACT AREA-SELECTING GOLD  TAILS-150u" TIN-LEAD MIN OVER 50u" NICKEL

   SPECIFICATIONS

ELECTRICAL
1. INDUCTANCE AT 100mVDC BIAS: 350μ H MAX.
2. C W/W(pF MAX):28 pF
3. LEAKAGE INDUCTANCE AT 100KHz DC 100mV:0.3μ H MAX.
4. INSULATION LOSS: 1.0dB MAX @1-80 MHz 1.2dB MAX @ 100 MHz

5. RETURN LOSS: 14dB MIN @ 1-60 MHz 10dB MIN @ 60-100 MHz

6. CROSS TALK: 35 dB MIN @ 1-80 Mhz
MECHANICAL
1. MATING FORCE: 2.27 Kgf MAX
2. DURABILITY: 750 CYCLES MIN

3. PCB RETENTION PRE-SOLDER:1LB MIN

ENVIRONMENTAL
1. STORAGE :-40℃~85℃
MATES WITH MODULAR PLUG ConFORMING TO FCC PART 68,SUBPART F.
