价格：￥0.70/PCS
读卡类型：IC
应用范围：PCB
起订：3000PCS
供应：100018PCS
| 读卡类型 | IC |
|---|---|
| 应用范围 | PCB |
| 接口类型 | RJ45(水晶头) |
| 支持卡数 | 单卡 |
| 制作工艺 | 注塑 |
| 接触件材质 | 铜 |
| 绝缘体材质 | PBT |
| 针数 | 8C |
| 芯数 | 8P |
| 形状 | 矩形 |
| 种类 | 插头/插座 |
| 品牌 | 兴伸展电子 |

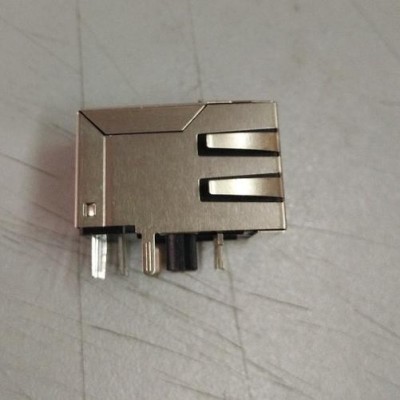

| 型号 | RJ45插座 |
BLACK , φ0.46mm, UL94V-0 PBT 1X1 屏蔽 直插 扁针，镀金厚度正6U”
MATERIAL
1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON
2. HOUSING COLOR : BLACK OR OTHERS
3. CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm
4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"
5. SHIELD : 0.20 THICKNESS BRASS WITH NICKEL PLATED
SPECIFICATIONS
ELECTRICAL
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING: 1.0 AMP
3. CONTACT RESISTANCE: 30 MILLIOHMS MAX.
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC
5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTE
MECHANICAL
1. DURABILITY : 750 CYCLES MIN
2. PCB RETENTION PRE-SOLDER: 1 LB MIN
ENVIRONMENTAL
1. STORAGE :-40℃~80℃
2. OPERATION: 0℃~70℃
