价格:¥0.60/pcs
品牌:天睦
产品认证:UL
额定电流:1A
起订:5000pcs
供应:10000000pcs
发货:10天内
发送询价
产品认证 | UL |
---|---|
额定电流 | 1A |
壳体材质 | 铜 |
导电体材质 | 磷青铜镀金 |
品牌 | 天睦 |

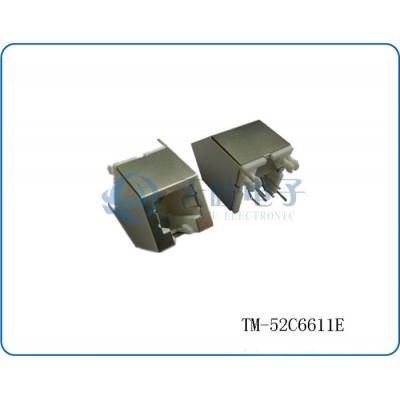

型号 | RJ11 |
加工定制 | 是 |
Electrical: Current Rating:1.5AMPS Voltacge Rating:125VAC Insulation Resistance:500MΩ Min Withstand Voltage:AC 1500V AC 1500V 50Hz or 60Hz 6s Contact Resistance:20mΩ Max Mechanical: Mating Force:2.2KG.F Max Retention Strength:7.7Kg Between jack and plug Durability:750Mating cycles Mini MATERIAL: Housing: PBT(UL94V-0) Gold Needle: Phosphor bronze after first nickel plating gold-plated Gold Plating: 6μ inch, 15μ inch, 30μ inch, 50μ inch Operation Temperature: -40℃~85℃ Storage Temperature: 0℃~70℃
