价格：面议
品牌：JST,MOLEX,JAM,AMP/TE,KET,YEONHO
产品认证：SGS
读卡类型：TF
供应：75000
发送询价
| 产品认证 | SGS |
| 读卡类型 | TF |
| 工作频率 | 低频 |
| 接口类型 | HDR |
| 特性 | 防潮 |
| 线长 | 0（mm） |
| 芯数 | 18 |
| 形状 | 条形 |
| 应用范围 | 通讯 |
| 针数 | 18 |
| 制作工艺 | 冷压 |
| 种类 | 胶壳(housing) |
| 绝缘体材质 | 尼龙 |
| 接触件材质 | 磷青铜 |
| 支持卡数 | 多合一 |
| 品牌 | JST/压着端子 |
| 型号 | SMP-18V-NC |

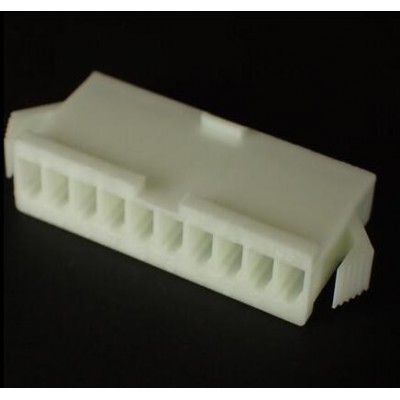

| SM connector |
![]()
![]() | | *High contact pressure
*Secure lock mechanism
*Mountable on panels of various thickness without using tools.
*The contacts are individually surrounded by housing walls.
| | Product Profile | | Series | SM connector | | Category | Wire to Wire Connectors | | Type | Crimp style, With locking device | | | Specification | | Pitch | 2.5 mm | | Current rating | MAX 3A | | Voltage rating | MAX 250V |
Compliant with RoHS.
(LF)(SN) as identification part number shall be displayed on a label.
When ordering RoHS compliant products, please inquire to the nearest
JST Sales Office, or order them with the described part number adding
(LF)(SN) as the identification marking after it.
![]() Further Information ![]() 3D Data
| | |
