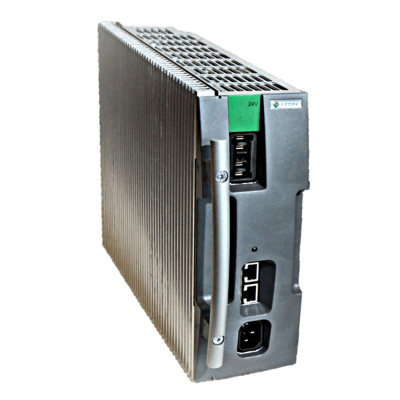

芬兰Powernet 电源 后备电源 DC UPS不间断电源  MHE系列图1

芬兰Powernet 电源 后备电源 DC UPS不间断电源 MHE系列

2021-09-23 15:104920询价

价格:¥0.00/件

品牌:Powernet

发货:3天内

发送询价

芬兰Powernet 电源 后备电源 DC UPS不间断电源  MRC系列

MRC 整流器模块专为要求严苛的工业和电信应用而设计和优化。

整流器在 48、60、110、125 和 220 VDC 下提供 1600W 输出功率,在 24 VDC 下提供 1100W 输出功率。 整流器输入为单相,140-275 Vac。 整流器采用对流冷却。

整流器可以与系统控制器一起运行,也可以作为独立模块在输出中带有或不带有电池。

自然对流冷却

输出 24、48、60、110、125、220 VDC

1600W输出功率

1100W 24VDC 型号

恒定输出功率特性

标称 230VAC 输入,140-290 VAC

有源负载均流

内部过热保护

 通过 CAN 总线与 VIDI 控制器进行数字通信

 全前端布线的灵活设计

EMC:EN 300 386

安全:IEC/EN 60950-1 CB 认证

Technical Specifications

AC Input

MRC24- 1100

MRC48- 1600

MRC60- 1600

MRC110- 1600

MRC125- 1600

MRC220- 1600

Nominal input

230 VAC

Input range

140 – 290 VAC (100% output power 180-275 VAC)

Startup voltage

180 VAC

Reduced output

power

140 – 180 VAC, derating factor 1% / 1 VAC

Input frequency

range

45 to 65 Hz

Maximum current

(at 180 VAC, full load)



6.9 A



9.7 A



9.8 A



9.6 A



9.6 A



9.6 A

Power factor

0.99 (typical @ 230 VAC)

Input protection

Mains fuse, Varistor and gas discharge tube for transient surge protection,

Automatic shut-off above 290 VAC (restart at 280 VAC)



DC Output

MRC24- 1100

MRC48- 1600

MRC60- 1600

MRC110- 1600

MRC125- 1600

MRC220-1600

Voltage range

21-30 VDC

42-58 VDC

51-72 VDC

97-132 VDC

97-145 VDC

189-265 VDC

Voltage factory

setting

27.3 VDC

54.5 VDC

68.1 VDC

123.6 VDC

136.8 VDC

245.3 VDC

Maximum current

45.8 A

@24V

32.7A @

48V

26.7A @

60V

14.5 A

@ 110 V

12.8 A

@ 125 V

7.2 A

@220 V

Constant output

power

1100 W

1600 W

Hold-up time

> 20 ms , at full load, output voltage from nominal to minimum

Static voltage

regulation

± 0.3 % (load, line, temperature)

Dynamic load

regulation

± 4.0 % for 10%-90% or 90%-10% load step, recovery time < 1.0 ms

Ripple

and noise

< 100 mVp-p



Output protection

Overvoltage shutdown Current limit / short circuit protection

Power limiting

Internal overtemperature protection



Features

MRC24- 1100

MRC48- 1600

MRC60- 1600

MRC110- 1600

MRC125- 1600

MRC220- 1600

Efficiency, typical

(at 50-85% load)

90 %

92 %

91 %

> 92%

> 91%

> 91%

Load current share

± 5 % from true average current between the modules

Rectifier alarms

Mains fault alarm (hig/low), Low output voltage alarm,

Overvoltage shutdown alarm, Rectifier alarm, Temperature Alarm

Visual Indications

LED: Green/Red/Yellow

Energy save

operation mode

See VIDI controller manual



Mechanical

MRC24-1100, MRC48-1600, MRC60-1600, MCR 110-1600, MRC 125-1600, MRC 220-1600

Dimensions

230 x 83 x 350 mm

Weight

4.60 kg

Protection class

IP20 / IEC 529

Connections

MRC24-1100, MRC48-1600, MRC60-1600, MCR 110-1600, MRC 125-1600, MRC 220-1600

Connector, AC

Appliance plug IEC 320 / 10 A male

Connector, DC

FCI Twinblade TM Power IO connector

Connector, PowerCAN

2 pcs RJ-45



Environmental


Cooling

Natural convection

Acoustic noise

< 40 dB

Operating temperature

-20 / +50 °C

Storage temperature

-40 / +70 °C

Humidity

95 % (relative humidity, non-condensing)

Altitude (max)

2000 m above sea level



Applicable Standards


EMC

ETSI EN 300 386: 2005



Environment

Operation: ETS 300 019-2-3 cl T3.2

Storage: ETS 300 019-2-1 cl T1.2

Transportation: ETS 300 019-2-2 cl T2.3

Safety

IEC / EN 60950-1

Approvals

CE, CB certified

ROHS/WEEE

2002/95/EC

Quality

Manufacture and design conform to ISO 9001, ISO 14001



Order Information

Description

Order number

MRC 24-1100

92G310

MRC 48-1600

92G340

MRC 60-1600

92G290

MRC 110-1600

92G300

MRC 125-1600

92H620

MRC 220-1600

92G320
